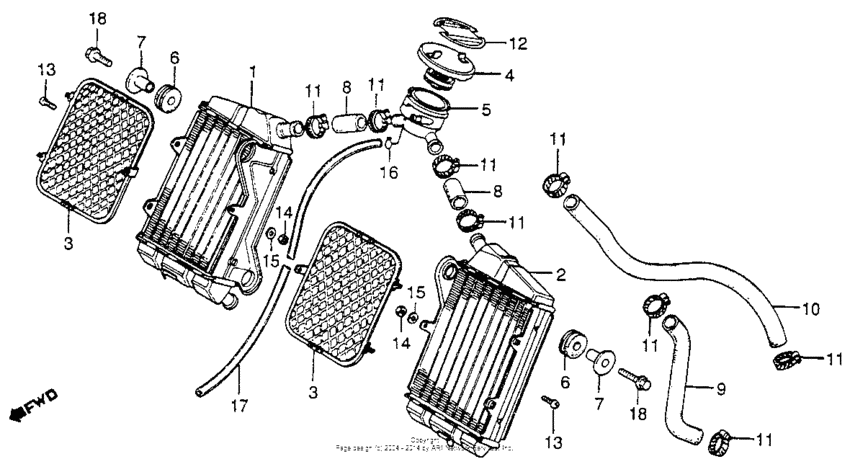

Radiator 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-KA4-305
Radiator, r
|
19010-KA4-305 |
— | ||
|
2
|
2
19015-KA4-305
Radiator, l
|
19015-KA4-305 |
— | ||
|
3
|
3
19033-KA4-000
Grill,radiator
|
19033-KA4-000 |
— | ||
|
4
|
4
19037-KA4-003
Cap comp.
|
19037-KA4-003 |
— | ||
|
5
|
5
19039-KA4-003
Neck,filler
|
19039-KA4-003 |
— | ||
|
6
|
6
19051-KA4-000 Rubber, radiator mounting |
19051-KA4-000 |
from US $3.40 |
||
|
7
|
7
19052-MB0-000 Collar, radiator mounting |
19052-MB0-000 |
from US $4.44 |
||
|
8
|
8
19055-KA4-000
Hose,joint
|
19055-KA4-000 |
— | ||
|
9
|
9
19061-KA4-000
Hose a, water
|
19061-KA4-000 |
— | ||
|
10
|
10
19062-KA4-000
Hose, water
|
19062-KA4-000 |
— | ||
|
11
|
11
19506-KA4-000 Clamp, water hose |
19506-KA4-000 |
from US $6.66 |
||
|
12
|
12
87509-KA4-670
Label, radiator cap
|
87509-KA4-670 |
— | ||
|
13
|
13
93500-040-080-G ScrewPAN, 4X8 |
93500-040-080-G |
from US $0.37 |
||
|
14
|
14
94001-040-700-S NutHEX., 4MM |
94001-040-700-S |
from US $0.37 |
||
|
15
|
15
94101-04700 WasherPLAIN, 4MM |
94101-04700 |
from US $0.37 |
||
|
16
|
16
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
17
|
17
95003-230-0310M Tube (8x12x3000) |
95003-230-0310M |
from US $7.99 |
||
|
18
|
18
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
