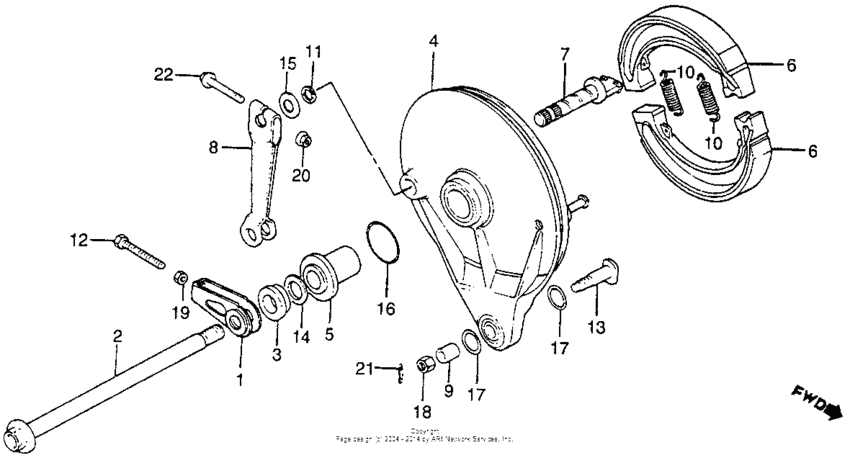

Rear brake panel 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-KA4-405 Shoe kit, brake |
06430-KA4-405 |
US $37.21 |
||
|
1
|
1
40543-KA4-010
Adjuster,chain
|
40543-KA4-010 |
— | ||
|
2
|
2
42301-KA4-000
Axle,rr.wheel
|
42301-KA4-000 |
— | ||
|
3
|
3
42313-KA4-000 Collar,panel side |
42313-KA4-000 |
US $24.34 |
||
|
4
|
4
43100-KA4-000
Panel comp,brk
|
43100-KA4-000 |
— | ||
|
5
|
5
43111-KA4-000
Bush a,rr brk pnl
|
43111-KA4-000 |
— | ||
|
6
|
6
43120-KA4-305
Shoe, brake
|
43120-KA4-305 |
— | ||
|
7
|
7
43141-430-000
Cam,rr.brake
|
43141-430-000 |
— | ||
|
8
|
8
43410-KA4-000
Arm,rr brk
|
43410-KA4-000 |
— | ||
|
9
|
9
43433-444-000
Collar,distance
|
43433-444-000 |
— | ||
|
10
|
10
45133-329-000 Spring, fr. brake shoe |
45133-329-000 |
from US $3.26 |
||
|
11
|
11
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
12
|
12
90119-KA4-000
Bolt,chain adj
|
90119-KA4-000 |
— | ||
|
13
|
13
90127-444-000
Bolt,panel stpr
|
90127-444-000 |
— | ||
|
14
|
14
90523-292-000
Washer,18.5x38
|
90523-292-000 |
— | ||
|
15
|
15
90509-169-000
Washer, 14mm
|
90509-169-000 |
— | ||
|
16
|
16
91301-371-005 O-ring 40x2.6 |
91301-371-005 |
from US $4.47 |
||
|
17
|
17
91302-430-003
O-ring,20x1.8
|
91302-430-003 |
— | ||
|
18
|
18
94001-100-000-S NutHEX., 10MM |
94001-100-000-S |
from US $0.44 |
||
|
19
|
19
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
20
|
20
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
21
|
21
9420140300 Pin, split, 4.0x30 |
9420140300 |
from US $0.44 |
||
|
22
|
22
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
