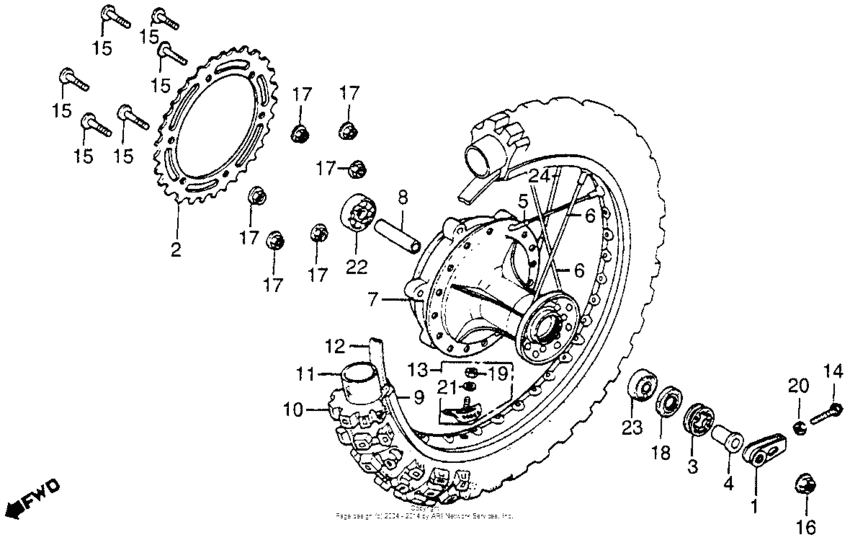

Rear wheel 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-KA4-010
Adjuster,chain
|
40543-KA4-010 |
— | ||
|
2
|
2
41202-KA4-000
Sprkt,final 52t
(Optional). |
41202-KA4-000 |
— | ||
|
2
|
2
41203-KA4-810
Sprkt,final 54t
|
41203-KA4-810 |
— | ||
|
2
|
2
41204-KA4-000
Sprocket (56t)
(Optional). |
41204-KA4-000 |
— | ||
|
3
|
3
41231-430-000
Retainer,bearing
|
41231-430-000 |
— | ||
|
4
|
4
42311-KA4-000
Collar,rr wheel
|
42311-KA4-000 |
— | ||
|
5
|
5
426A0-KA4-000
Spoke set a,rr.
|
426A0-KA4-000 |
— | ||
|
6
|
6
426B0-KA4-000
Spoke set b,rr.
|
426B0-KA4-000 |
— | ||
|
7
|
7
42601-KA4-000
Hub, rr. wheel
|
42601-KA4-000 |
— | ||
|
8
|
8
42620-430-000
Collar,rr.dist.
|
42620-430-000 |
— | ||
|
9
|
9
42701-KA4-003
Rim, rr. wheel
|
42701-KA4-003 |
— | ||
|
10
|
10
42711-KS7-771 Tire (110/100-18) |
42711-KS7-771 |
US $91.90 |
||
|
11
|
11
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
11
|
11
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
12
|
12
42713-300-003 Flap, tire (2.15-18) |
42713-300-003 |
US $8.19 |
||
|
13
|
13
42715-MA0-770 Stopper, bead (2.15) |
42715-MA0-770 |
from US $46.19 |
||
|
14
|
14
90119-KA4-000
Bolt,chain adj
|
90119-KA4-000 |
— | ||
|
15
|
15
90125-KA4-000 Screw, flat (8x31) |
90125-KA4-000 |
from US $2.66 |
||
|
16
|
16
90305-KA4-003 Nut, axle (18mm) |
90305-KA4-003 |
US $5.14 |
||
|
17
|
17
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
18
|
18
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
20
|
20
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
21
|
21
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
22
|
22
96140-620-401-0 Bearing (6204u) |
96140-620-401-0 |
from US $8.58 |
||
|
23
|
23
96140-6304010 Bearing (6304u) |
96140-6304010 |
from US $11.56 |
||
|
24
|
24
97820-791-60U-0 Spoke set,bs7x160 |
97820-791-60U-0 |
US $3.03 |
||
