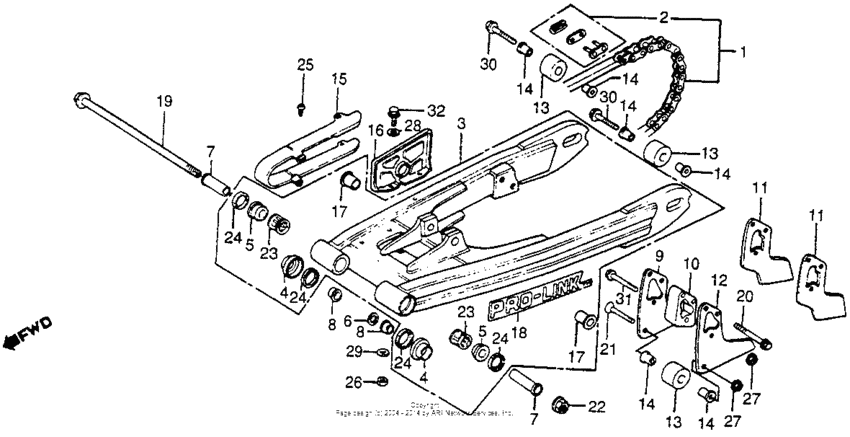

Swingarm + drive chain 81 Diagram Honda CR250
- Year
- 1981
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*BC300025 - JH2ME030*BC305412
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-KA4-505
Chain, drive
(Optional). |
405W3-KA4-505 |
— | ||
|
1
|
1
40530-KA4-003 Chain,drive |
40530-KA4-003 |
US $188.68 |
||
|
1
|
1
40530-KA4-812 Chain,drive(112l)(Optional). |
40530-KA4-812 |
US $163.34 |
||
|
2
|
2
40531-KA4-004 Joint,chain |
40531-KA4-004 |
US $7.85 |
||
|
2
|
2
40531-958-003
Joint,drive chain
|
40531-958-003 |
— | ||
|
3
|
3
52000-KA4-010
Swingarm assy., rr.
|
52000-KA4-010 |
— | ||
|
4
|
4
52108-KA4-000
Holder,dust seal
|
52108-KA4-000 |
— | ||
|
5
|
5
52109-KA4-003
Bush,pivot thrust
|
52109-KA4-003 |
— | ||
|
6
|
6
52125-KA4-000
Shim a,cush.arm
|
52125-KA4-000 |
— | ||
|
6
|
6
52126-KA4-000
Shim,cush arm piv
|
52126-KA4-000 |
— | ||
|
6
|
6
52127-KA4-000
Shim c
|
52127-KA4-000 |
— | ||
|
6
|
6
52128-KA4-000
Shim d
|
52128-KA4-000 |
— | ||
|
7
|
7
52141-KA4-000
Collar a,rr.fork
|
52141-KA4-000 |
— | ||
|
8
|
8
52142-KA4-000
Collar b,rr fork
|
52142-KA4-000 |
— | ||
|
9
|
9
52146-KA4-000
Guide,chain r
|
52146-KA4-000 |
— | ||
|
10
|
10
52147-KA4-010
Slider,chain
|
52147-KA4-010 |
— | ||
|
11
|
11
52148-KA4-000
Slider,chain
|
52148-KA4-000 |
— | ||
|
12
|
12
52156-KA4-000
Guide,chain l
|
52156-KA4-000 |
— | ||
|
13
|
13
52158-MA0-000 Roller,chain |
52158-MA0-000 |
US $13.11 |
||
|
14
|
14
52159-MA0-000
Collar,roller
|
52159-MA0-000 |
— | ||
|
15
|
15
52170-KA4-000
Slider,chain
|
52170-KA4-000 |
— | ||
|
16
|
16
52180-KA4-000
Mud guard,chain
|
52180-KA4-000 |
— | ||
|
17
|
17
52464-KA4-000
Washer,cush.arm
|
52464-KA4-000 |
— | ||
|
18
|
18
87121-MA0-300
Emb,rr fork
|
87121-MA0-300 |
— | ||
|
19
|
19
90117-KA4-000
Bolt,rr fork
|
90117-KA4-000 |
— | ||
|
20
|
20
90123-400-000 Bolt,hex.,8x55 |
90123-400-000 |
US $0.81 |
||
|
21
|
21
90126-KA4-000 Screw, flat, 8x45 |
90126-KA4-000 |
from US $2.74 |
||
|
22
|
22
90301-430-000
Nut, rr.
|
90301-430-000 |
— | ||
|
23
|
23
91071-MA0-003 Bearing, rr. |
91071-MA0-003 |
from US $13.74 |
||
|
24
|
24
91253-KA4-000
Dust seal,26x36x4
|
91253-KA4-000 |
— | ||
|
25
|
25
93901-16210 Screw,6x16 |
93901-16210 |
from US $0.44 |
||
|
26
|
26
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
27
|
27
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
28
|
28
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
29
|
29
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
30
|
30
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
31
|
31
95701-080-450-0 BoltFLANGE, 8X45 |
95701-080-450-0 |
from US $0.81 |
||
|
32
|
32
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
