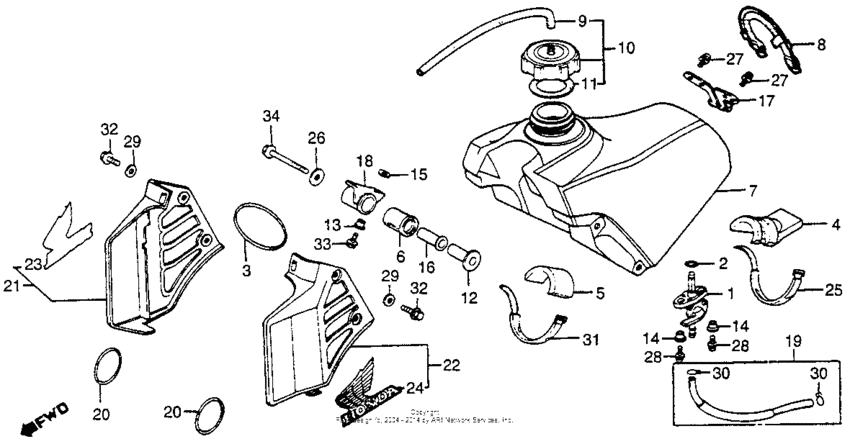

Fuel tank + radiator shroud 82 Diagram Honda CR250
- Year
- 1982
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*CC400021 - JH2ME030*CC406212
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-ML3-911 Petcock assy. |
16950-ML3-911 |
from US $33.59 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.64 |
||
|
3
|
3
17215-444-000
Band,air/c cap
Use from Frame SN CC400026 |
17215-444-000 |
— | ||
|
4
|
4
17504-KA4-000
Rubber a
|
17504-KA4-000 |
— | ||
|
5
|
5
17506-357-000
Rubber b,tank set
|
17506-357-000 |
— | ||
|
6
|
6
17508-KA4-000
Rubb,tank m/t
|
17508-KA4-000 |
— | ||
|
7
|
7
17510-KA4-700
Tank comp,fuel
|
17510-KA4-700 |
— | ||
|
8
|
8
17516-KA4-000
Band,tank rear
|
17516-KA4-000 |
— | ||
|
9
|
9
17521-429-000 Tube |
17521-429-000 |
from US $4.97 |
||
|
10
|
10
17620-KA4-710
Cap assy,fueltank
|
17620-KA4-710 |
— | ||
|
11
|
11
17624-KA4-000 Gasket |
17624-KA4-000 |
from US $5.03 |
||
|
12
|
12
17625-KA4-700
Collar,tank mtg.
|
17625-KA4-700 |
— | ||
|
13
|
13
17626-KA4-700 Collar |
17626-KA4-700 |
from US $5.37 |
||
|
14
|
14
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
15
|
15
17627-467-000 Rubber, fr |
17627-467-000 |
from US $2.07 |
||
|
16
|
16
17628-KA4-000
Collar,slider
|
17628-KA4-000 |
— | ||
|
17
|
17
17629-KA4-700
Brkt,fuel tank rr
|
17629-KA4-700 |
— | ||
|
18
|
18
17634-KA5-770
Brkt,tank.fr.
|
17634-KA5-770 |
— | ||
|
19
|
19
17681-KA4-700
Tube assy., fuel
|
17681-KA4-700 |
— | ||
|
20
|
20
19053-KA4-700
Band,rad.shroud
|
19053-KA4-700 |
— | ||
|
21
|
21
19071-KA4-701
Shroud sub,r.radi
Use up to Frame SN CC400025 |
19071-KA4-701 |
— | ||
|
22
|
22
19072-KA4-701
Shroud sub,l.radi
Use up to Frame SN CC400025 |
19072-KA4-701 |
— | ||
|
23
|
23
87126-KA4-700
Emb.,r.rad.shroud
|
87126-KA4-700 |
— | ||
|
24
|
24
87127-KA4-700
Emb.,l.rad.shroud
|
87127-KA4-700 |
— | ||
|
25
|
25
90130-KA4-000
Band,wire
|
90130-KA4-000 |
— | ||
|
26
|
26
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
27
|
27
93500-060120H Screw, pan, 6x12 |
93500-060120H |
from US $0.44 |
||
|
28
|
28
93500-060160H Screw, pan (6x16) |
93500-060160H |
from US $0.44 |
||
|
29
|
29
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.36 |
||
|
30
|
30
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
31
|
31
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
|
32
|
32
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.62 |
||
|
33
|
33
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
34
|
34
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.68 |
