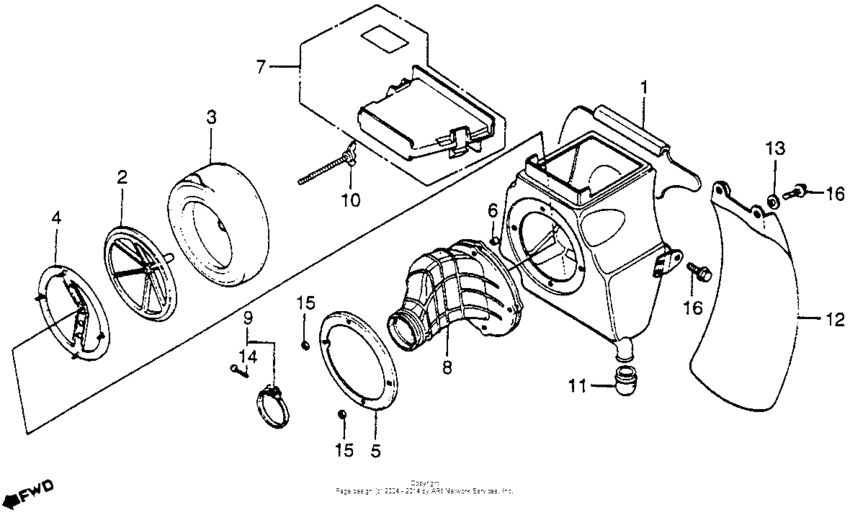

Air cleaner 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-KA4-711
Case,air cleaner
Use up to Frame SN DC503036 |
17210-KA4-711 |
— | ||
|
2
|
2
17212-KA4-700
Base, element
|
17212-KA4-700 |
— | ||
|
3
|
3
17213-KA4-700 Element, air cleaner |
17213-KA4-700 |
US $36.96 |
||
|
4
|
4
17215-KA4-700
Stay, a/clnr elem
|
17215-KA4-700 |
— | ||
|
5
|
5
17217-KA4-700
Plate, fr
|
17217-KA4-700 |
— | ||
|
6
|
6
17221-KA4-300 Collar, connecting tube setting |
17221-KA4-300 |
from US $2.66 |
||
|
7
|
7
17224-KA3-680
Sub,air/c cover
|
17224-KA3-680 |
— | ||
|
8
|
8
17253-KA4-710
Tube,air/c conn.
|
17253-KA4-710 |
— | ||
|
9
|
9
17257-357-000
Band b, a/clnr tube
|
17257-357-000 |
— | ||
|
10
|
10
17291-KA4-700
Bolt, a/clnr elem
|
17291-KA4-700 |
— | ||
|
11
|
11
17358-KA3-830
Tube, drain
|
17358-KA3-830 |
— | ||
|
12
|
12
80106-KA4-710
Mudguard,rr.fend.
|
80106-KA4-710 |
— | ||
|
13
|
13
90506-425-000 Washer, rr. cover |
90506-425-000 |
from US $2.89 |
||
|
14
|
14
93500-040-200-H ScrewPAN, 4X20 |
93500-040-200-H |
from US $0.37 |
||
|
15
|
15
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
16
|
16
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
