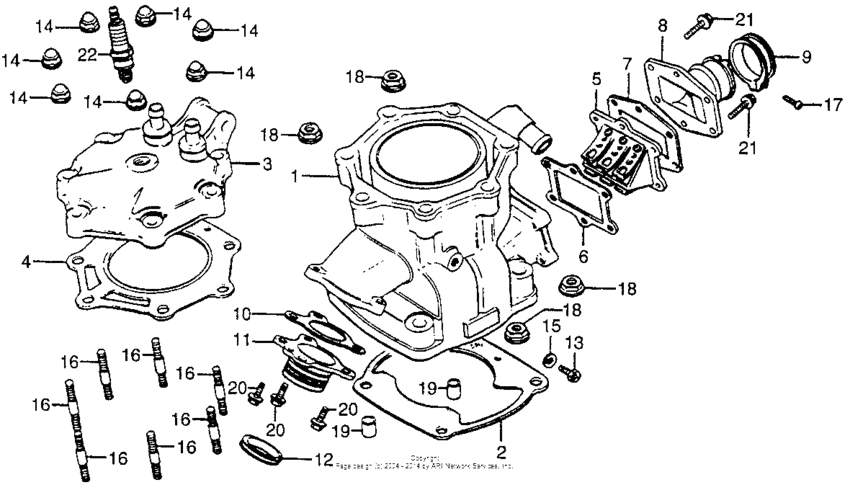

Cylinder head + cylinder + reed valve 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-KA4-710
Cylinder
|
12100-KA4-710 |
— | ||
|
2
|
2
12191-KA4-306 Gasket, cylinder |
12191-KA4-306 |
US $6.75 |
||
|
3
|
3
12200-KA4-710
Cylinder head
|
12200-KA4-710 |
— | ||
|
4
|
4
12254-KA4-307
Gasket, cyl hd
|
12254-KA4-307 |
— | ||
|
5
|
5
14100-467-003
Valve assy reed
|
14100-467-003 |
— | ||
|
6
|
6
14132-KAE-000 Gasket a, reed valve |
14132-KAE-000 |
from US $4.71 |
||
|
7
|
7
14133-430-306 Gasket b, reed valve |
14133-430-306 |
from US $7.55 |
||
|
8
|
8
16221-KA4-000
Ins.carb
|
16221-KA4-000 |
— | ||
|
9
|
9
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
10
|
10
18291-430-306 Gasket, ex. pipe |
18291-430-306 |
from US $7.79 |
||
|
11
|
11
18351-KA4-700
Joint,ex.pipe
|
18351-KA4-700 |
— | ||
|
12
|
12
18359-KA4-700
Seal,ex.joint
|
18359-KA4-700 |
— | ||
|
13
|
13
90037-360-000 Bolt, oil check |
90037-360-000 |
from US $2.74 |
||
|
14
|
14
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
15
|
15
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
16
|
16
92700-08050-0E
Bolt
|
92700-08050-0E |
— | ||
| replacement | |||||
|
16
|
16
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
16
|
16
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
17
|
17
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
18
|
18
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
19
|
19
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
20
|
20
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
21
|
21
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
22
|
22
98079-58679 Spark plug (br8eg) |
98079-58679 |
US $9.32 |
||
|
22
|
22
98079-58659 Spark plug (w24esr-v) |
98079-58659 |
from US $3.71 |
||
