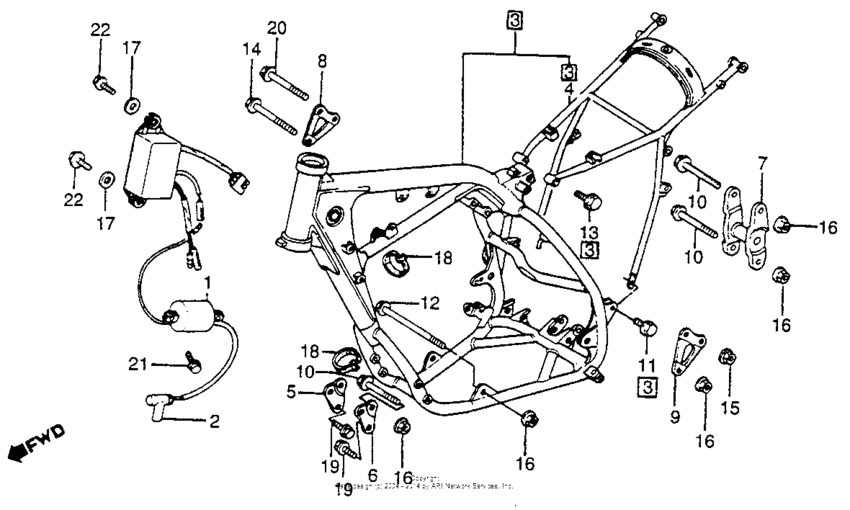

Frame + ignition coil 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-KA4-710
Coil,ignition
|
30500-KA4-710 |
— | ||
|
2
|
2
30700-KA5-771 Cap assy. |
30700-KA5-771 |
from US $23.13 |
||
|
3
|
3
50100-KA4-712ZA
Body frame*r-119*
|
50100-KA4-712ZA |
— | ||
|
4
|
4
50140-KA4-711ZA
Body frame*r-119*
|
50140-KA4-711ZA |
— | ||
|
5
|
5
50351-KA4-711
Pl,r.eng.hanger
|
50351-KA4-711 |
— | ||
|
6
|
6
50352-KA4-711
Pl,l.eng.hanger
|
50352-KA4-711 |
— | ||
|
7
|
7
50354-KA4-700
Brkt.,rr.engine
|
50354-KA4-700 |
— | ||
|
8
|
8
50401-KA4-710
Brkt,r.head hang.
|
50401-KA4-710 |
— | ||
|
9
|
9
50402-KA4-710
Brkt,l.head hang.
|
50402-KA4-710 |
— | ||
|
10
|
10
90018-KA4-710
Bolt,flg.,10x90
|
90018-KA4-710 |
— | ||
| replacement | |||||
|
10
|
10
90107-KA4-730
Bolt, flange (10x90)
|
90107-KA4-730 |
— | ||
|
11
|
11
90108-KA3-710 Bolt, joint (8x19) |
90108-KA3-710 |
from US $2.59 |
||
|
12
|
12
90105-GJ1-000
Bolt, flg (10x114)
|
90105-GJ1-000 |
— | ||
|
13
|
13
90118-471-000 Bolt, flange, 8x37 |
90118-471-000 |
from US $3.26 |
||
|
14
|
14
90112-GK4-000 Bolt, flange (10x53) |
90112-GK4-000 |
from US $3.70 |
||
|
15
|
15
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
16
|
16
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
17
|
17
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
18
|
18
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
19
|
19
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
20
|
20
95801-080-450-8 BoltFLANGE, 8X45 |
95801-080-450-8 |
from US $0.81 |
||
|
21
|
21
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
22
|
22
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
