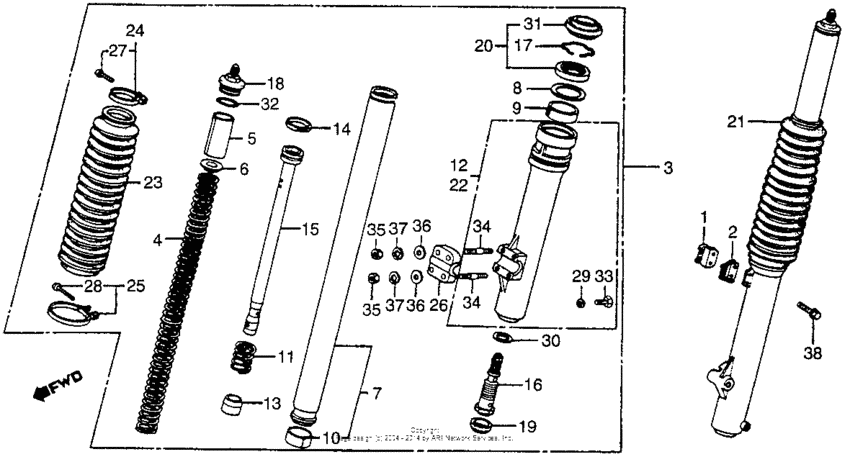

Front fork 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-KA3-710 Clamp a, fr. |
45461-KA3-710 |
from US $8.55 |
||
|
2
|
2
45462-KA3-710 Clamp b, fr. |
45462-KA3-710 |
from US $6.38 |
||
|
3
|
3
51400-KA4-682
Fork assy., r. fr.
|
51400-KA4-682 |
— | ||
|
4
|
4
51401-KA4-681
Spg.,fr.cushion
|
51401-KA4-681 |
— | ||
|
4
|
4
51401-KA4-711
Spg.,fr.cushion
(Optional). |
51401-KA4-711 |
— | ||
|
4
|
4
51402-KA4-681
Spg,fr.cushion
(Optional). |
51402-KA4-681 |
— | ||
|
4
|
4
51403-KA4-711
Spg,fr.cushion
(Optional). |
51403-KA4-711 |
— | ||
|
5
|
5
51404-KA4-711
Spacer,spring
|
51404-KA4-711 |
— | ||
|
6
|
6
51405-KA4-711 Seat, spring |
51405-KA4-711 |
from US $3.11 |
||
|
7
|
7
51410-KA4-731
Pipe, fr. fork
|
51410-KA4-731 |
— | ||
|
8
|
8
51412-KA4-305
Ring,back up
|
51412-KA4-305 |
— | ||
|
9
|
9
51414-KA4-711
Bush,guide
|
51414-KA4-711 |
— | ||
|
10
|
10
51415-MN1-671 Bush, slider |
51415-MN1-671 |
from US $9.03 |
||
|
11
|
11
51416-KA4-711
Spring, fr. rebound
|
51416-KA4-711 |
— | ||
|
12
|
12
51420-KA4-711
Case,r.bottom
|
51420-KA4-711 |
— | ||
|
13
|
13
51432-KA4-711
Piece,oillock
|
51432-KA4-711 |
— | ||
|
14
|
14
51437-KA4-711
Ring, piston
|
51437-KA4-711 |
— | ||
|
15
|
15
51440-KA4-681
Pipe comp.,seat
|
51440-KA4-681 |
— | ||
|
16
|
16
51441-KA4-711
Bolt comp.,center
|
51441-KA4-711 |
— | ||
|
17
|
17
51447-KA4-711 Ring |
51447-KA4-711 |
from US $3.18 |
||
|
18
|
18
51450-KA4-711
Bolt assy., fr. fork
|
51450-KA4-711 |
— | ||
|
19
|
19
51461-KA4-711
Cap, fr. fork
|
51461-KA4-711 |
— | ||
|
20
|
20
51490-KA4-731 Seal set, fr. fork |
51490-KA4-731 |
US $28.56 |
||
|
21
|
21
51500-KA4-682
Fork Assy., L. Fr.
|
51500-KA4-682 |
— | ||
|
22
|
22
51520-KA4-711
Case,l.bottom
|
51520-KA4-711 |
— | ||
|
23
|
23
51611-KA4-711
Boot, fr. fork
|
51611-KA4-711 |
— | ||
|
24
|
24
51612-KA4-831 Band, boot (upper) |
51612-KA4-831 |
from US $7.70 |
||
|
25
|
25
51613-MK2-003 Band, boot (lower) |
51613-MK2-003 |
from US $8.29 |
||
|
26
|
26
51634-KT0-671 Holder, axle |
51634-KT0-671 |
from US $18.02 |
||
|
27
|
27
90202-KA4-711
Screw, pan (3.5x15)
|
90202-KA4-711 |
— | ||
|
28
|
28
90202-MK2-003 Screw, pan (3.5x25) |
90202-MK2-003 |
from US $2.44 |
||
|
29
|
29
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
30
|
30
90544-KA4-711
Washer (18mm)
|
90544-KA4-711 |
— | ||
|
31
|
31
91254-KA4-731
Dust seal, fr. fork
|
91254-KA4-731 |
— | ||
|
32
|
32
91356-KA4-711 O-ring (35.2x2.4) |
91356-KA4-711 |
from US $3.26 |
||
|
33
|
33
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
34
|
34
92900-06028-0B BoltSTUD, 6X28 |
92900-06028-0B |
from US $0.59 |
||
|
35
|
35
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
36
|
36
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
37
|
37
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
38
|
38
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
