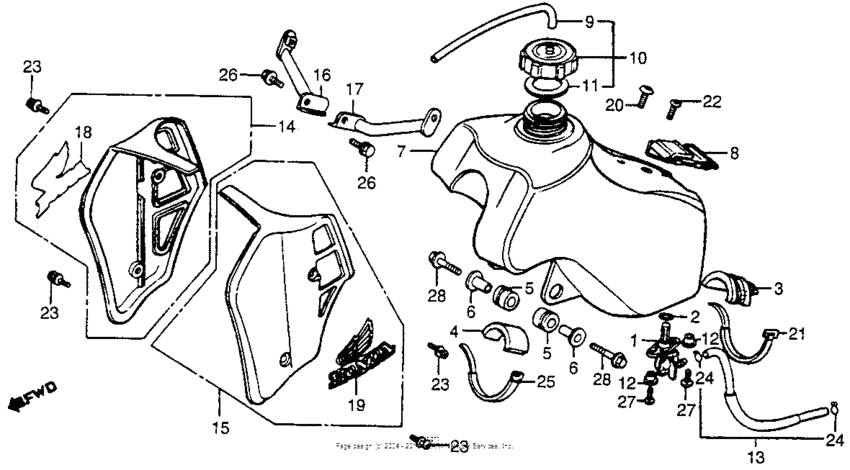

Fuel tank + radiator shroud 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-ML3-911 Petcock assy. |
16950-ML3-911 |
from US $33.59 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
3
|
3
17504-KA3-710
Rubber a,tank set
|
17504-KA3-710 |
— | ||
|
4
|
4
17506-357-000
Rubber b,tank set
|
17506-357-000 |
— | ||
|
5
|
5
17508-KA3-710 Rubber |
17508-KA3-710 |
from US $5.92 |
||
|
6
|
6
17509-KA3-710 Collar |
17509-KA3-710 |
from US $7.25 |
||
|
7
|
7
17510-KA4-711
Tank comp.,fuel
Use up to Frame SN DC505158 |
17510-KA4-711 |
— | ||
|
8
|
8
17516-KA3-710
Band, rr.
|
17516-KA3-710 |
— | ||
|
9
|
9
17521-429-000 Tube |
17521-429-000 |
from US $5.33 |
||
|
10
|
10
17620-KA4-710
Cap assy,fueltank
|
17620-KA4-710 |
— | ||
|
11
|
11
17624-KA4-000 Gasket |
17624-KA4-000 |
from US $5.03 |
||
|
12
|
12
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
13
|
13
17681-KA4-710
Tube assy.,fuel
|
17681-KA4-710 |
— | ||
|
14
|
14
19071-KA4-710
Sub,r.rad.shroud
|
19071-KA4-710 |
— | ||
|
15
|
15
19072-KA4-710
Sub,l.rad.shroud
|
19072-KA4-710 |
— | ||
|
16
|
16
19510-KA4-710
Stay,r.shroud
|
19510-KA4-710 |
— | ||
|
17
|
17
19515-KA4-710
Stay,l.shroud
|
19515-KA4-710 |
— | ||
|
18
|
18
87126-KA3-730
Emb,r.rad.shroud
|
87126-KA3-730 |
— | ||
|
19
|
19
87127-KA3-710
Emb.l.rad.shroud
|
87127-KA3-710 |
— | ||
|
20
|
20
90131-S0X-A00 ScrewTRUSS, 6X16 |
90131-S0X-A00 |
from US $1.05 |
||
|
21
|
21
90130-KA4-000
Band,wire
|
90130-KA4-000 |
— | ||
|
22
|
22
93500-060160H Screw, pan (6x16) |
93500-060160H |
from US $0.44 |
||
|
23
|
23
93891-060-140-0 Screw-washer,6x14 |
93891-060-140-0 |
US $0.55 |
||
|
24
|
24
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
25
|
25
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
|
26
|
26
95700-080-180-8 BoltFLANGE, 8X18 |
95700-080-180-8 |
from US $0.59 |
||
|
26
|
26
95701-080-180-8 Bolt, FLANGE, 8X18 |
95701-080-180-8 |
from US $0.59 |
||
|
27
|
27
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
28
|
28
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
