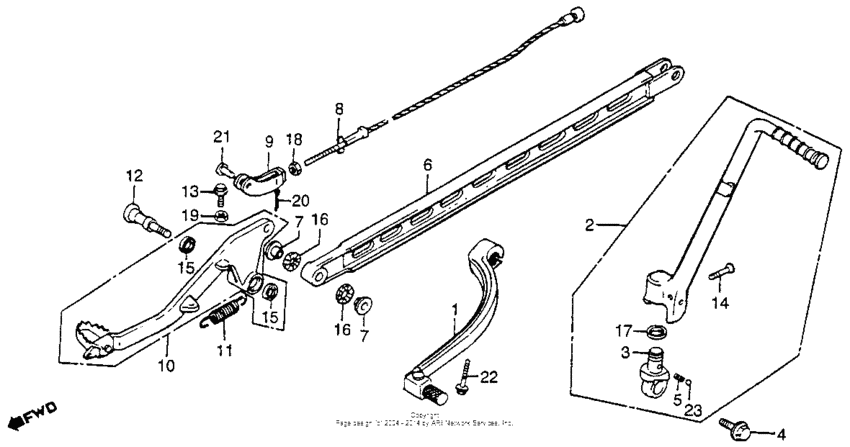

Gearshift pedal + brake pedal + kick starter arm 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KA4-710
Pedal comp,change
|
24700-KA4-710 |
— | ||
|
2
|
2
28300-KA4-710
Arm,kick starter
|
28300-KA4-710 |
— | ||
|
3
|
3
28302-KA4-710
Joint,kick arm
|
28302-KA4-710 |
— | ||
|
4
|
4
28306-KA4-700
Bolt,kick joint
|
28306-KA4-700 |
— | ||
|
5
|
5
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
6
|
6
43431-KA4-711
Arm,rr.brk.stop.
|
43431-KA4-711 |
— | ||
|
7
|
7
43432-KA3-710
Collar, rr.
|
43432-KA3-710 |
— | ||
|
8
|
8
43451-KA4-710
Cable,rr.brake
|
43451-KA4-710 |
— | ||
|
9
|
9
43458-KA4-710
Joint,rr.brake
|
43458-KA4-710 |
— | ||
|
10
|
10
46510-KA4-710
Pedal,brake
|
46510-KA4-710 |
— | ||
|
11
|
11
46511-KA4-710 Spring, brake pedal |
46511-KA4-710 |
US $9.67 |
||
|
12
|
12
46513-KA5-770
Shaft,brake pivot
|
46513-KA5-770 |
— | ||
|
13
|
13
90015-KA4-710
Bolt,flg,sh,6x20
|
90015-KA4-710 |
— | ||
|
14
|
14
90101-MAC-680 Bolt, kick arm |
90101-MAC-680 |
from US $4.59 |
||
|
15
|
15
91251-444-000 Dust seal |
91251-444-000 |
from US $3.70 |
||
|
16
|
16
91272-KA3-712
Dust seal (13x18x3)
|
91272-KA3-712 |
— | ||
|
17
|
17
91303-KA4-003
Dust,seal,19x25x3
|
91303-KA4-003 |
— | ||
|
18
|
18
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
19
|
19
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
20
|
20
94201-16120 PinSPLIT, 1.6X12 |
94201-16120 |
from US $0.37 |
||
|
21
|
21
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
22
|
22
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
22
|
22
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
22
|
22
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
23
|
23
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
