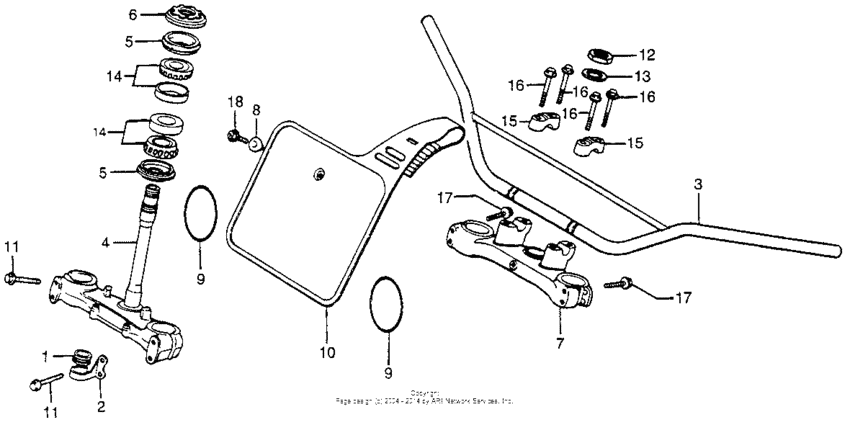

Handlebar + top bridge 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-KA4-000 Guide, cable (inner) |
45466-KA4-000 |
from US $4.74 |
||
|
2
|
2
45468-KA3-710
Guide,brk.cable
|
45468-KA3-710 |
— | ||
|
3
|
3
53100-KA5-770
Pipe,strg.handle
|
53100-KA5-770 |
— | ||
|
4
|
4
53200-KA4-710
Stem,steering
|
53200-KA4-710 |
— | ||
|
5
|
5
53214-KA4-701 Dust seal |
53214-KA4-701 |
from US $3.40 |
||
|
6
|
6
53229-KA3-710
Thread
|
53229-KA3-710 |
— | ||
|
7
|
7
53230-KA4-710
Bridge,fork top
|
53230-KA4-710 |
— | ||
|
8
|
8
61101-441-000 Collar, fr |
61101-441-000 |
from US $3.83 |
||
|
9
|
9
61133-430-000
Band,fr.no.plate
|
61133-430-000 |
— | ||
|
10
|
10
61136-KA3-680ZA
Plate,fr*type-1*
|
61136-KA3-680ZA |
— | ||
|
11
|
11
90103-KB7-000 Bolt, flange, 8x45 |
90103-KB7-000 |
US $3.48 |
||
|
12
|
12
90304-KA3-710 Nut, steering stem |
90304-KA3-710 |
from US $11.54 |
||
|
12
|
12
90304-KK0-000
Nut, steering stem
|
90304-KK0-000 |
— | ||
|
13
|
13
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
14
|
14
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $21.62 |
||
|
15
|
15
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
16
|
16
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
|
17
|
17
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
18
|
18
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
