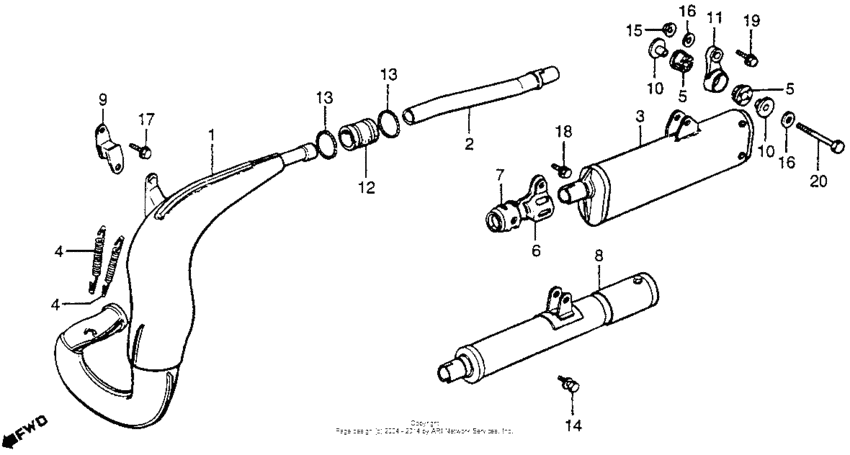

Muffler 82 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KA4-710ZA
Cham,ex.*nh-106*
|
18300-KA4-710ZA |
— | ||
|
2
|
2
18328-KA4-710
Pipe,silenc.conn.
|
18328-KA4-710 |
— | ||
|
3
|
3
18330-KA4-717
Silencer comp
|
18330-KA4-717 |
— | ||
|
4
|
4
18332-KA4-000
Spring, ex. pipe
|
18332-KA4-000 |
— | ||
|
5
|
5
18334-KA4-000 Rubber, muffler |
18334-KA4-000 |
US $3.77 |
||
|
6
|
6
18335-KA4-711
Band silencer set
Use up to Frame SN DC503036 |
18335-KA4-711 |
— | ||
|
7
|
7
18336-KA4-710
Rub,silenc.set.
|
18336-KA4-710 |
— | ||
|
8
|
8
18350-KA4-821
Arrester,spark
(Optional). |
18350-KA4-821 |
— | ||
|
9
|
9
18355-KA4-000
Stay, muffler
|
18355-KA4-000 |
— | ||
|
10
|
10
18357-KA4-710 Collar, silencer |
18357-KA4-710 |
from US $4.29 |
||
|
11
|
11
18358-KA3-710
Stay,silencer
|
18358-KA3-710 |
— | ||
|
12
|
12
18361-KA4-710
Seal,silencer
|
18361-KA4-710 |
— | ||
|
13
|
13
18362-KA4-700 Band, muffler seal |
18362-KA4-700 |
from US $3.85 |
||
|
14
|
14
93402-060-120-0 Bolt-washer6X12 (Optional). |
93402-060-120-0 |
from US $0.52 |
||
|
14
|
14
93412-060-120-0 Bolt-washer6X12 (Optional). |
93412-060-120-0 |
from US $0.52 |
||
|
15
|
15
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
16
|
16
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
17
|
17
95701-080-140-8 BoltFLANGE, 8X14 |
95701-080-140-8 |
from US $0.62 |
||
|
18
|
18
96001-060-100-0 BoltFLANGE, 6X10 Use up to Frame SN DC503279 |
96001-060-100-0 |
from US $0.59 |
||
|
18
|
18
96001-060-140-0 BoltFLANGE, 6X14 Use from Frame SN DC503280 |
96001-060-140-0 |
from US $0.59 |
||
|
19
|
19
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
20
|
20
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
