Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 19010-KA3-711 Radiator,r	19010-KA3-711	—
2	2 19015-KA3-711 Radiator,l	19015-KA3-711	—
3	3 19033-KA3-710 Grill,r.radiator	19033-KA3-710	—
4	4 19033-KA3-810 Grill,r.rad.mud (Optional).	19033-KA3-810	—
5	5 19034-KA3-710 Grill,l.radiator	19034-KA3-710	—
6	6 19034-KA3-810 Grill,l rad.mud (Optional).	19034-KA3-810	—
7	7 19037-KA4-701 Cap	19037-KA4-701	from US $36.14
	replacement
7	7 19045-MZ1-621 Cap, radiator	19045-MZ1-621	from US $20.25
8	8 19051-KA3-710 Rubber	19051-KA3-710	from US $2.89
9	9 19052-KA3-710 Collar	19052-KA3-710	from US $4.29
10	10 19061-KA4-710 Hose a,water	19061-KA4-710	—
11	11 19062-KA4-710 Hose b,water	19062-KA4-710	—
12	12 19064-KA3-710 Hose,f,water Use from Frame SN DC503360	19064-KA3-710	—
12	12 19065-KA4-710 Hose e,water Use up to Frame SN DC503359	19065-KA4-710	—
13	13 19066-KA4-710 Hose f,water	19066-KA4-710	—
14	14 19067-KA4-711 Hose g,water	19067-KA4-711	—
15	15 19069-KA4-700 Joint,water hose	19069-KA4-700	—
16	16 19506-KA4-000 Clamp, water hose	19506-KA4-000	from US $6.66
17	17 19505-KS6-700 Clamp a, water hose	19505-KS6-700	from US $7.65
18	18 19508-KA3-710 Nut, spring, 6mm	19508-KA3-710	from US $4.44
19	19 95001-750-0860M Bulk hose (7.5x8000)	95001-750-0860M	from US $76.16
20	20 95002-01130 Clip TUBE(A13)	95002-01130	from US $1.40
21	21 95002-02080 Clip TUBE(B8)	95002-02080	from US $0.44
22	22 95003-140-0110M Bulk hose (6x9x1000)	95003-140-0110M	from US $1.95
23	23 96001-0602200 Bolt, flange, 6x22	96001-0602200	from US $0.74

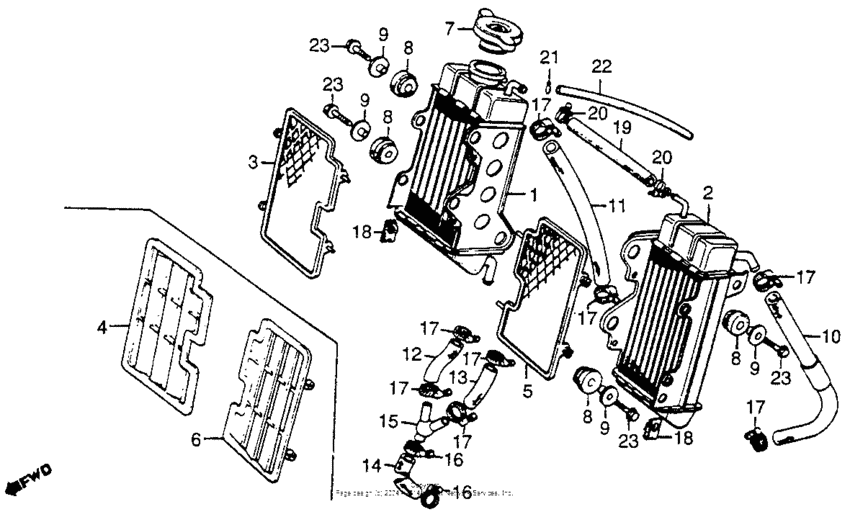

Radiator 83 Diagram Honda CR250 USA 13619606-787060
