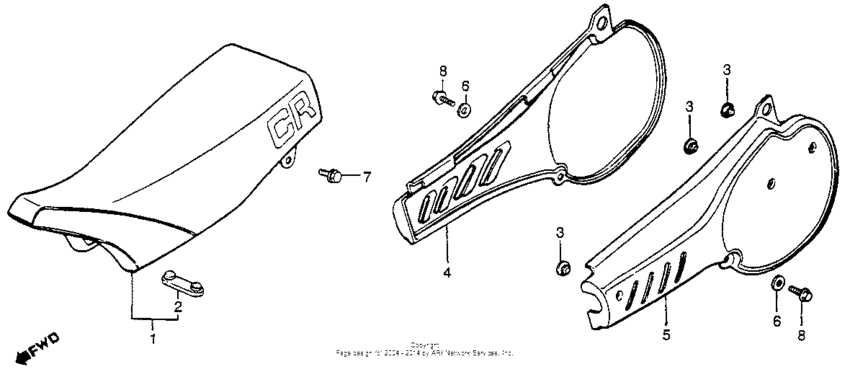

Seat + side cover 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77100-KA4-682
Seat comp
Use up to Frame SN DC505449 |
77100-KA4-682 |
— | ||
|
1
|
1
77100-KA4-812
Seat comp
(Optional). |
77100-KA4-812 |
— | ||
|
2
|
2
77110-KA3-710
Rubber,seat set
|
77110-KA3-710 |
— | ||
|
3
|
3
83512-KA4-700 Rubber, side cover |
83512-KA4-700 |
from US $4.88 |
||
|
4
|
4
83520-KA4-710ZA
Sub,cover *type 1
|
83520-KA4-710ZA |
— | ||
|
5
|
5
83620-KA4-710ZA
Sub,cover*type 1*
|
83620-KA4-710ZA |
— | ||
|
6
|
6
90506-KA3-710
Washer, side cover
|
90506-KA3-710 |
— | ||
|
7
|
7
95701-080-120-8 BoltFLANGE, 8X12 |
95701-080-120-8 |
from US $0.62 |
||
|
8
|
8
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
