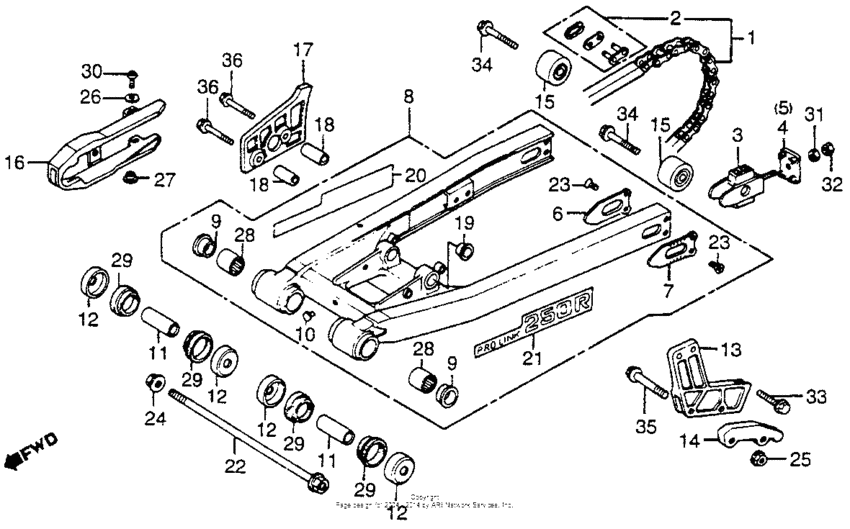

Swingarm + drive chain 83 Diagram Honda CR250
- Year
- 1983
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*DC500016 - JH2ME030*DC505429
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-KA5-505
Chain, drive
|
405W3-KA5-505 |
— | ||
|
1
|
1
40532-KA4-702 Chain,drive(Optional). |
40532-KA4-702 |
US $160.52 |
||
|
1
|
1
40532-KA4-711
Chain (520ds3-114l)
(Optional). |
40532-KA4-711 |
— | ||
|
2
|
2
40531-KA4-702 Joint,drive chain |
40531-KA4-702 |
US $8.01 |
||
|
2
|
2
40531-KA4-732
Master link
(Optional). |
40531-KA4-732 |
— | ||
|
3
|
3
40543-KA3-710
Adjuster,chain
|
40543-KA3-710 |
— | ||
|
4
|
4
40544-KA3-710 Retainer |
40544-KA3-710 |
US $33.75 |
||
|
5
|
5
40544-KA4-710 Ret.r.chain adjr. |
40544-KA4-710 |
US $28.31 |
||
|
6
|
6
42307-KA3-710
Washer
|
42307-KA3-710 |
— | ||
|
7
|
7
42308-KA3-710
Washer, swingarm
|
42308-KA3-710 |
— | ||
|
8
|
8
52000-KA4-711
Swingarm assy., rr.
|
52000-KA4-711 |
— | ||
|
9
|
9
52109-KA4-701 Bush, pivot thrust |
52109-KA4-701 |
from US $10.80 |
||
|
10
|
10
52130-KA3-711
Plug, swingarm
|
52130-KA3-711 |
— | ||
|
11
|
11
52141-KA4-700
Collar, swingarm
|
52141-KA4-700 |
— | ||
|
12
|
12
52144-KA3-731 Cap, dust seal |
52144-KA3-731 |
from US $9.18 |
||
|
12
|
12
52144-KA4-701 Cap,dust seal |
52144-KA4-701 |
US $13.43 |
||
| replacement | |||||
|
12
|
12
52144-KA3-731 Cap, dust seal |
52144-KA3-731 |
from US $9.18 |
||
|
13
|
13
52146-KA4-710
Guide,chain
|
52146-KA4-710 |
— | ||
|
14
|
14
52147-KA3-711
Slider,chain
|
52147-KA3-711 |
— | ||
|
15
|
15
52158-KA3-711
Roller,chain tens
|
52158-KA3-711 |
— | ||
|
16
|
16
52170-KA4-710
Slider,chain
|
52170-KA4-710 |
— | ||
|
17
|
17
52180-KA4-701
Guard,chain mad
|
52180-KA4-701 |
— | ||
|
18
|
18
52181-KA4-700
Collar
|
52181-KA4-700 |
— | ||
|
19
|
19
52464-KA4-700
Wash,cushion arm
|
52464-KA4-700 |
— | ||
|
20
|
20
87121-KA4-710
Emb.,r.rr.fork
|
87121-KA4-710 |
— | ||
|
21
|
21
87122-KA4-710
Emblem,l.rr.fork
|
87122-KA4-710 |
— | ||
|
22
|
22
90117-KA3-710
Bolt, swingarm
|
90117-KA3-710 |
— | ||
|
23
|
23
90124-KA3-711 Screw, flat (5x4) |
90124-KA3-711 |
from US $3.40 |
||
|
24
|
24
90301-430-000
Nut, rr.
|
90301-430-000 |
— | ||
|
25
|
25
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
26
|
26
90483-041-000 Washer, stopper |
90483-041-000 |
from US $2.29 |
||
|
27
|
27
90556-044-000 Washer, fr |
90556-044-000 |
from US $1.35 |
||
|
28
|
28
91071-MA0-003 Bearing, rr. |
91071-MA0-003 |
from US $13.74 |
||
|
29
|
29
91253-KA4-701 Dust seal |
91253-KA4-701 |
from US $9.62 |
||
|
30
|
30
93500-050-100-H ScrewPAN, 5X10 |
93500-050-100-H |
from US $0.37 |
||
|
31
|
31
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
32
|
32
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
33
|
33
95701-080-320-8 BoltFLANGE, 8X32 |
95701-080-320-8 |
from US $0.81 |
||
|
34
|
34
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
35
|
35
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
36
|
36
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
