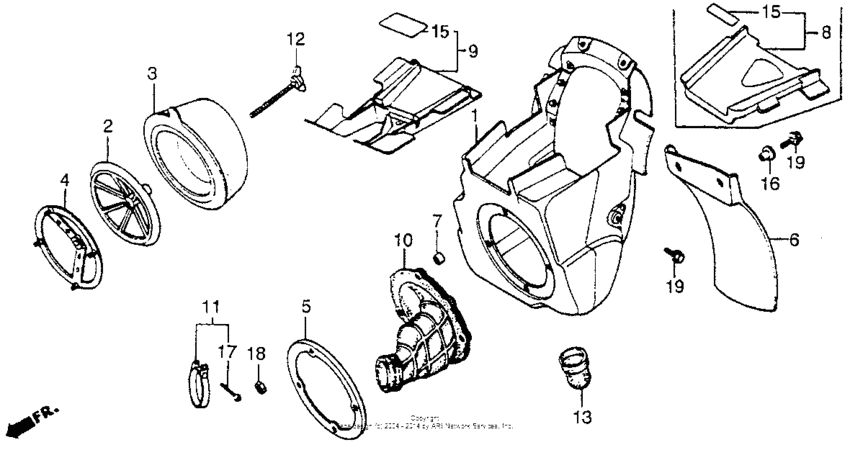

Air cleaner 84-85 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-KA3-730
Housing, air cleaner
|
17210-KA3-730 |
— | ||
|
2
|
2
17212-KA4-700
Base, element
|
17212-KA4-700 |
— | ||
|
3
|
3
17213-KA4-700 Element, air cleaner |
17213-KA4-700 |
US $36.96 |
||
|
4
|
4
17215-KA4-700
Stay, a/clnr elem
|
17215-KA4-700 |
— | ||
|
5
|
5
17217-KA4-700
Plate, fr
|
17217-KA4-700 |
— | ||
|
6
|
6
17218-KA3-730
Splash guard a
|
17218-KA3-730 |
— | ||
|
7
|
7
17221-KA4-300 Collar, connecting tube setting |
17221-KA4-300 |
from US $2.66 |
||
|
8
|
8
17224-KA3-740
Cvr sub, a/clnr hsg
|
17224-KA3-740 |
— | ||
|
10
|
10
17253-KA4-730
Tube,air/c.conn.
|
17253-KA4-730 |
— | ||
|
11
|
11
17257-357-000
Band b, a/clnr tube
|
17257-357-000 |
— | ||
|
12
|
12
17291-KA4-700
Bolt, a/clnr elem
|
17291-KA4-700 |
— | ||
|
13
|
13
17358-KA3-830
Tube, drain
|
17358-KA3-830 |
— | ||
|
15
|
15
87517-KA4-770
Label
|
87517-KA4-770 |
— | ||
|
16
|
16
90506-425-000 Washer, rr. cover |
90506-425-000 |
from US $2.89 |
||
|
17
|
17
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
18
|
18
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
19
|
19
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
