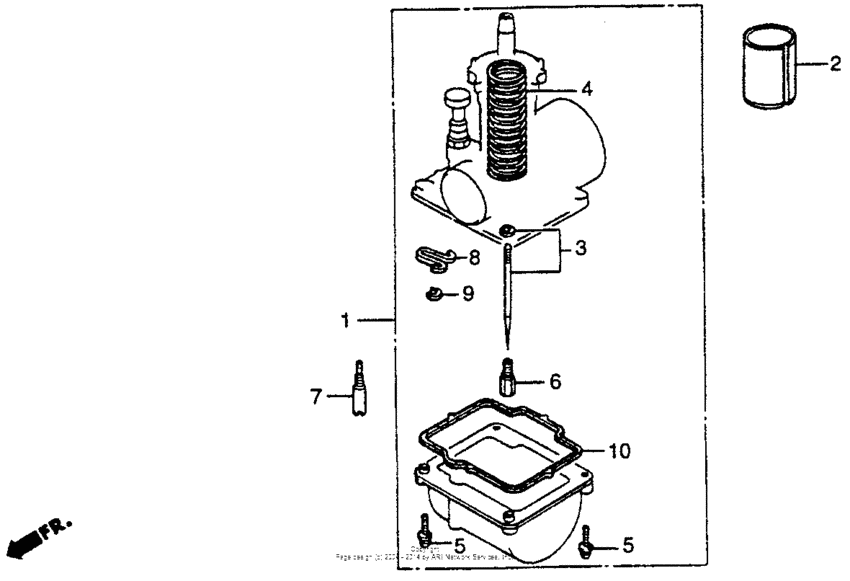

Carburetor optional kit 84 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16020-KA4-741
Op kit,parts set
|
16020-KA4-741 |
— | ||
|
2
|
2
16111-KA4-813
Valve,throttel
|
16111-KA4-813 |
— | ||
|
2
|
2
16111-KA4-823
Valve,throttle
|
16111-KA4-823 |
— | ||
|
3
|
3
16201-KA4-741 Needle set, jet |
16201-KA4-741 |
US $21.18 |
||
|
3
|
3
16202-KA4-741
Needle set, jet
|
16202-KA4-741 |
— | ||
|
3
|
3
16203-KA3-711
Needle set, jet
|
16203-KA3-711 |
— | ||
|
3
|
3
16204-KA4-004
Needle set, jet
|
16204-KA4-004 |
— | ||
|
3
|
3
16205-KA4-004
Needle set, jet
|
16205-KA4-004 |
— | ||
|
3
|
3
16012-KA3-004
Needle set, jet
|
16012-KA3-004 |
— | ||
|
3
|
3
16207-KA4-004 Needle set, jet |
16207-KA4-004 |
US $15.73 |
||
|
3
|
3
16208-KA4-004
Needle set, jet
|
16208-KA4-004 |
— | ||
|
3
|
3
16209-KA4-004 Needle set, jet |
16209-KA4-004 |
US $24.51 |
||
|
4
|
4
16210-KA5-004
Spring
|
16210-KA5-004 |
— | ||
|
5
|
5
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
6
|
6
99101-3571380 Jet, main (#138) |
99101-3571380 |
from US $6.66 |
||
|
6
|
6
99101-3571400 Jet, main (#140) |
99101-3571400 |
from US $6.66 |
||
|
6
|
6
99101-3571420 Jet, main (#142) |
99101-3571420 |
from US $6.66 |
||
|
6
|
6
99101-3571450 Jet, main (#145) |
99101-3571450 |
from US $6.66 |
||
|
6
|
6
99101-357-1480 Jet, main (#148) |
99101-357-1480 |
from US $6.66 |
||
|
6
|
6
99113-GHB1500 Jet, main (#150) |
99113-GHB1500 |
US $11.51 |
||
|
6
|
6
99113-GHB1550 Jet, main (#155) |
99113-GHB1550 |
US $11.48 |
||
|
6
|
6
99113-GHB1580 Jet, main (#158) |
99113-GHB1580 |
US $11.51 |
||
|
6
|
6
99113-GHB1600 Jet, main (#160) |
99113-GHB1600 |
US $11.51 |
||
|
6
|
6
99113-GHB1620 Jet, main (#162) |
99113-GHB1620 |
from US $6.66 |
||
|
6
|
6
99113-GHB1650 Jet, main (#165) |
99113-GHB1650 |
from US $6.66 |
||
|
6
|
6
99113-GHB1680 Jet, main (#168) |
99113-GHB1680 |
from US $6.66 |
||
|
7
|
7
99103-4410620 Jet, slow (#62) |
99103-4410620 |
US $5.33 |
||
|
7
|
7
99103-441-0650 Jet,slow #65 |
99103-441-0650 |
US $5.33 |
||
|
7
|
7
99103-4410700 Jet, slow (#70) |
99103-4410700 |
from US $5.33 |
||
|
7
|
7
99103-4410720 Jet, slow (#72) |
99103-4410720 |
US $5.33 |
||
|
8
|
8
16114-KG8-901
Plate, needle clip
|
16114-KG8-901 |
— | ||
|
9
|
9
16115-GHB-610 Clip, bar |
16115-GHB-610 |
from US $1.92 |
||
|
10
|
10
16163-KG8-901 Chamber,gasket |
16163-KG8-901 |
US $9.77 |
