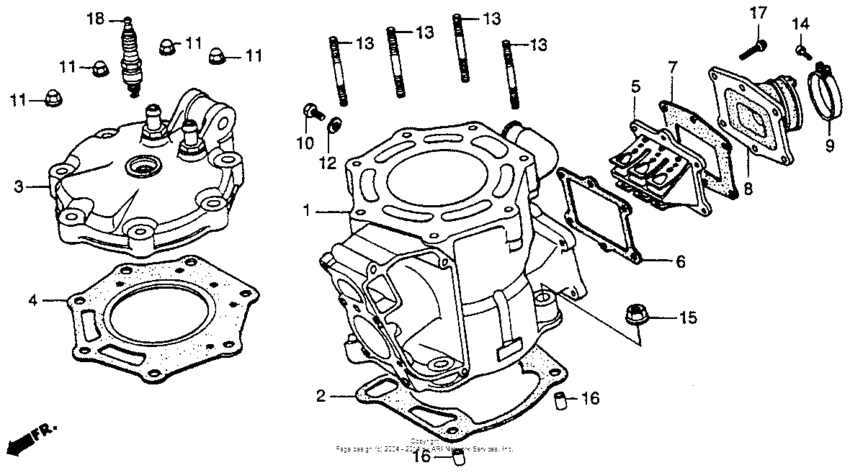

Cylinder head 84 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-KA4-740
Cylinder
|
12100-KA4-740 |
— | ||
|
2
|
2
12191-KA4-307 Gasket, cylinder |
12191-KA4-307 |
US $9.27 |
||
|
3
|
3
12200-KA4-740
Cylinder head
|
12200-KA4-740 |
— | ||
|
4
|
4
12254-KA4-308
Gasket, cyl hd
|
12254-KA4-308 |
— | ||
|
5
|
5
14100-KA4-741
Reed valve assy
|
14100-KA4-741 |
— | ||
|
6
|
6
14132-KAE-000 Gasket a, reed valve |
14132-KAE-000 |
from US $4.71 |
||
|
7
|
7
14133-430-306 Gasket b, reed valve |
14133-430-306 |
from US $7.55 |
||
|
8
|
8
16221-KA4-740
Insulator carb
|
16221-KA4-740 |
— | ||
|
9
|
9
16223-KA4-740
Band, insulator
|
16223-KA4-740 |
— | ||
|
10
|
10
90037-360-000 Bolt, oil check |
90037-360-000 |
from US $2.74 |
||
|
11
|
11
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
12
|
12
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
13
|
13
92700-08050-0E
Bolt
|
92700-08050-0E |
— | ||
| replacement | |||||
|
13
|
13
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
13
|
13
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
14
|
14
93500-050-200-A ScrewPAN, 5X20 Use up to Engine SN 2603346 |
93500-050-200-A |
from US $0.37 |
||
|
14
|
14
93500-050-250-A ScrewPAN, 5X25 Use from Engine SN 2603347 |
93500-050-250-A |
from US $0.44 |
||
|
15
|
15
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
16
|
16
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
17
|
17
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
18
|
18
98079-58679 Spark plug (br8eg) |
98079-58679 |
US $9.32 |
||
|
18
|
18
98079-58659 Spark plug (w24esr-v) |
98079-58659 |
from US $3.71 |
||
