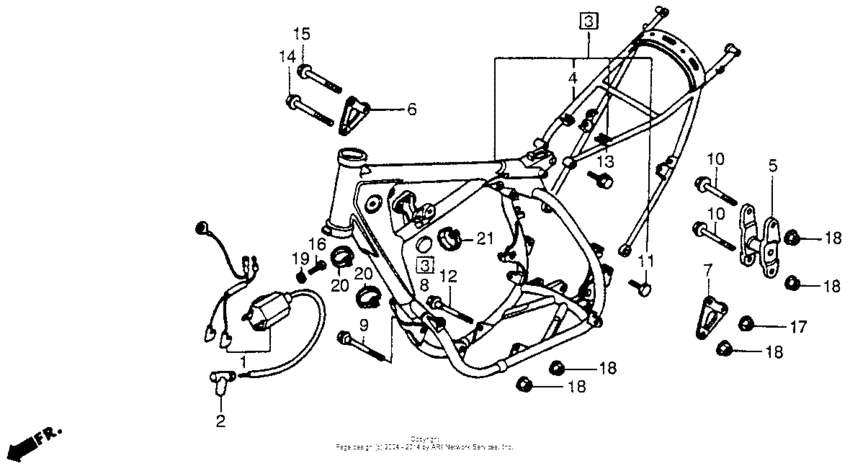

Frame 84 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-KA3-730
Coil comp ign
|
30500-KA3-730 |
— | ||
|
2
|
2
30700-KA5-771 Cap assy. |
30700-KA5-771 |
from US $23.13 |
||
|
3
|
3
50100-KA4-731ZA
Body,frame*r-119*
|
50100-KA4-731ZA |
— | ||
|
4
|
4
50140-KA3-730ZA
Frame, rr. *r119*
|
50140-KA3-730ZA |
— | ||
|
5
|
5
50354-KA4-730
Bracket, rr. eng hgr
|
50354-KA4-730 |
— | ||
|
6
|
6
50403-KA4-730
Brkt.r.head hange
|
50403-KA4-730 |
— | ||
|
7
|
7
50404-KA4-730
Brkt,l.head hange
|
50404-KA4-730 |
— | ||
|
8
|
8
87150-KA3-730
Seal (24mm)
|
87150-KA3-730 |
— | ||
|
9
|
9
90115-KW3-000 Bolt, flange (10x98) |
90115-KW3-000 |
from US $5.62 |
||
|
10
|
10
90107-KA4-730
Bolt, flange (10x90)
|
90107-KA4-730 |
— | ||
|
11
|
11
90108-KA3-730
Bolt, joint (8x21.5)
|
90108-KA3-730 |
— | ||
|
12
|
12
90105-GJ1-000
Bolt, flg (10x114)
|
90105-GJ1-000 |
— | ||
|
13
|
13
90118-KA3-730
Bolt, flange (8x37)
|
90118-KA3-730 |
— | ||
|
14
|
14
90112-GK4-000 Bolt, flange (10x53) |
90112-GK4-000 |
from US $3.70 |
||
|
15
|
15
90135-KA4-730
Bolt, flange (8x60)
|
90135-KA4-730 |
— | ||
|
16
|
16
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
19
|
19
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
20
|
20
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
21
|
21
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
