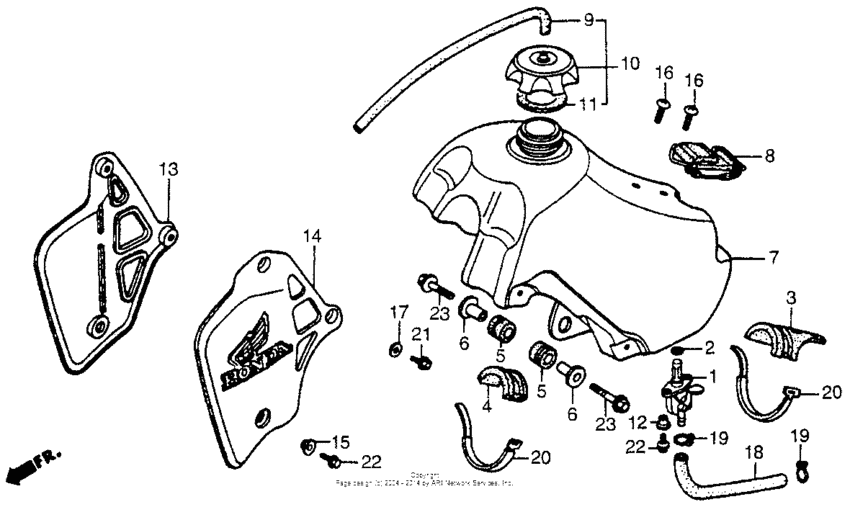

Fuel tank 84 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-ML3-911 Petcock assy. |
16950-ML3-911 |
from US $33.59 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
3
|
3
17504-KA3-731
Rubber a
|
17504-KA3-731 |
— | ||
|
4
|
4
17506-KA3-731
Rubber b
|
17506-KA3-731 |
— | ||
|
5
|
5
17508-KA3-710 Rubber |
17508-KA3-710 |
from US $5.92 |
||
|
6
|
6
17509-KA3-710 Collar |
17509-KA3-710 |
from US $7.25 |
||
|
7
|
7
17510-KA4-730
Tank comp.,fuel
|
17510-KA4-730 |
— | ||
|
8
|
8
17516-KA3-710
Band, rr.
|
17516-KA3-710 |
— | ||
|
9
|
9
17521-429-000 Tube |
17521-429-000 |
from US $5.33 |
||
|
10
|
10
17620-ML3-840
Cap assy., fuel tank
|
17620-ML3-840 |
— | ||
|
11
|
11
17624-KA4-000 Gasket |
17624-KA4-000 |
from US $5.03 |
||
|
12
|
12
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
13
|
13
19071-KA4-730
Bub,r.rad shroud
|
19071-KA4-730 |
— | ||
|
14
|
14
19072-KA4-730
Sub.,l.rad.shroud
|
19072-KA4-730 |
— | ||
|
15
|
15
19509-KA3-730 Collar (6x23) |
19509-KA3-730 |
from US $5.18 |
||
|
16
|
16
90131-S0X-A00 ScrewTRUSS, 6X16 |
90131-S0X-A00 |
from US $1.05 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
19
|
19
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
20
|
20
9501461300 Band a3, cable |
9501461300 |
from US $1.18 |
||
|
21
|
21
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
22
|
22
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
23
|
23
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
