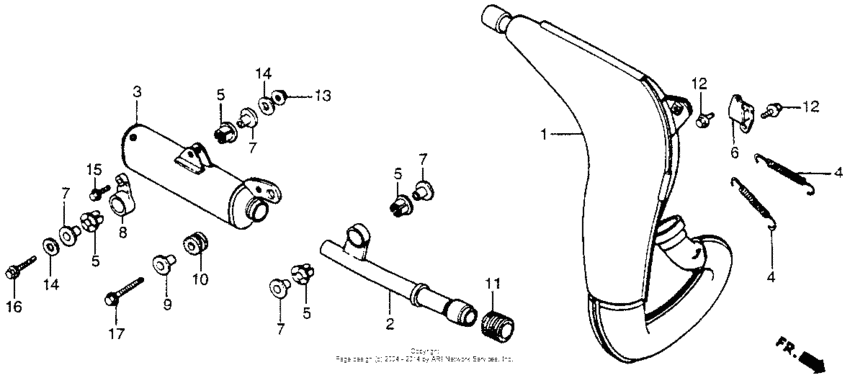

Muffler 84 Diagram Honda CR250
- Year
- 1984
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*EC600001 - JH2ME030*EC607757
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KA4-731ZA
Cham,exp.*nh-106*
|
18300-KA4-731ZA |
— | ||
|
2
|
2
18328-KA4-731
Pipe,silencer con
Use up to Frame SN EC604221 |
18328-KA4-731 |
— | ||
|
3
|
3
18330-KA4-732
Silencer comp
Use up to Frame SN EC602672 |
18330-KA4-732 |
— | ||
|
4
|
4
18332-KA4-000
Spring, ex. pipe
|
18332-KA4-000 |
— | ||
|
5
|
5
18334-KA4-000 Rubber, muffler |
18334-KA4-000 |
US $3.77 |
||
|
6
|
6
18355-KA4-000
Stay, muffler
|
18355-KA4-000 |
— | ||
|
7
|
7
18357-KA4-710 Collar, silencer |
18357-KA4-710 |
from US $4.29 |
||
|
8
|
8
18358-KA3-730
Stay, muffler
|
18358-KA3-730 |
— | ||
|
9
|
9
18363-KA3-730
Collar
|
18363-KA3-730 |
— | ||
|
10
|
10
18364-KA3-730
Rubber
|
18364-KA3-730 |
— | ||
|
11
|
11
18365-KA4-730 Rubber |
18365-KA4-730 |
from US $10.91 |
||
|
12
|
12
96300-0802000 Bolt, flange (8x20) |
96300-0802000 |
from US $0.74 |
||
|
13
|
13
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
14
|
14
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
15
|
15
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
16
|
16
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
17
|
17
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
