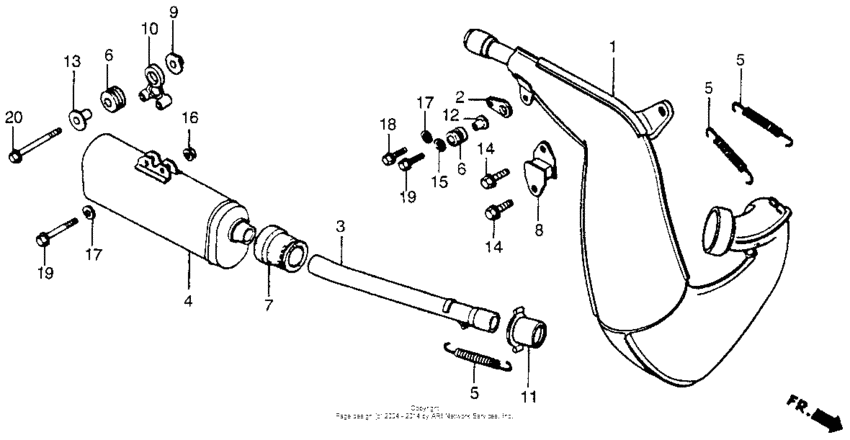

Muffler 85 Diagram Honda CR250
- Year
- 1985
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*FC700017 - JH2ME030*PC708871
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KA4-830
Chamber comp,exp
|
18300-KA4-830 |
— | ||
|
2
|
2
18325-KS6-000 Stay, rr. chamber |
18325-KS6-000 |
from US $15 |
||
|
3
|
3
18328-KA4-830
Pipe silencer con
|
18328-KA4-830 |
— | ||
|
4
|
4
18330-KA4-830
Silencer comp
|
18330-KA4-830 |
— | ||
|
5
|
5
18332-KA3-830
Spring, ex. pipe
|
18332-KA3-830 |
— | ||
|
6
|
6
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
7
|
7
18336-KA4-830
Rubber,slncr set
|
18336-KA4-830 |
— | ||
|
8
|
8
18355-KA4-000
Stay, muffler
|
18355-KA4-000 |
— | ||
|
9
|
9
18356-KA3-830
Collar, muffler
|
18356-KA3-830 |
— | ||
|
10
|
10
18358-KA3-830
Stay, muffler
|
18358-KA3-830 |
— | ||
|
11
|
11
18365-KA4-830
Seal,silencer
|
18365-KA4-830 |
— | ||
|
12
|
12
19052-KA3-830 Collar |
19052-KA3-830 |
US $4.90 |
||
| replacement | |||||
|
12
|
12
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
12
|
12
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
13
|
13
61104-430-000 Colr, fender setting |
61104-430-000 |
US $7.10 |
||
|
14
|
14
96300-0802000 Bolt, flange (8x20) |
96300-0802000 |
from US $0.74 |
||
|
15
|
15
90403-KA3-830 Washer |
90403-KA3-830 |
from US $1.92 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
19
|
19
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
19
|
19
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
19
|
19
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
20
|
20
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
