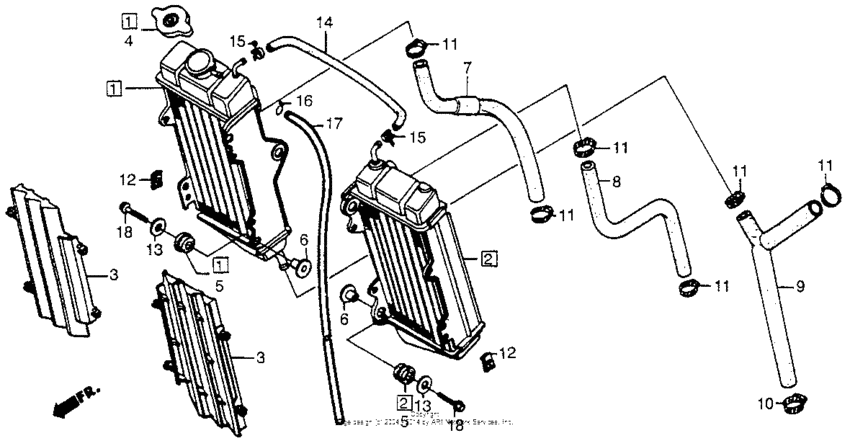

Radiator 85-87 Diagram Honda CR250
- Year
- 1985
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*FC700017 - JH2ME030*PC708871
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-KA3-306
Radiator r
|
19010-KA3-306 |
— | ||
|
2
|
2
19015-KA3-306
Radiator l
|
19015-KA3-306 |
— | ||
|
3
|
3
19033-KA3-831
Grill,radiator
|
19033-KA3-831 |
— | ||
|
4
|
4
19037-KA4-701 Cap |
19037-KA4-701 |
from US $36.14 |
||
| replacement | |||||
|
4
|
4
19045-MZ1-621 Cap, radiator |
19045-MZ1-621 |
from US $20.25 |
||
|
5
|
5
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
6
|
6
19052-KA3-830 Collar |
19052-KA3-830 |
US $4.90 |
||
| replacement | |||||
|
6
|
6
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
6
|
6
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
7
|
7
19061-KA3-830
Hose a,water
|
19061-KA3-830 |
— | ||
|
8
|
8
19062-KA3-830
Hose b,water
|
19062-KA3-830 |
— | ||
|
9
|
9
19068-KA4-830
Hose,h,water
|
19068-KA4-830 |
— | ||
|
10
|
10
19506-KA4-000 Clamp, water hose |
19506-KA4-000 |
from US $6.66 |
||
|
11
|
11
19504-KY1-003 Clamp (25mm) |
19504-KY1-003 |
from US $6.81 |
||
|
12
|
12
19508-KA3-710 Nut, spring, 6mm |
19508-KA3-710 |
from US $4.44 |
||
|
13
|
13
90403-KA3-830 Washer |
90403-KA3-830 |
from US $1.92 |
||
|
14
|
14
95001-750-0860M Bulk hose (7.5x8000) |
95001-750-0860M |
from US $76.16 |
||
|
15
|
15
95002-01130 ClipTUBE(A13) |
95002-01130 |
from US $1.40 |
||
|
16
|
16
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
17
|
17
95003-140-0110M Bulk hose (6x9x1000) |
95003-140-0110M |
from US $1.95 |
||
|
18
|
18
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
