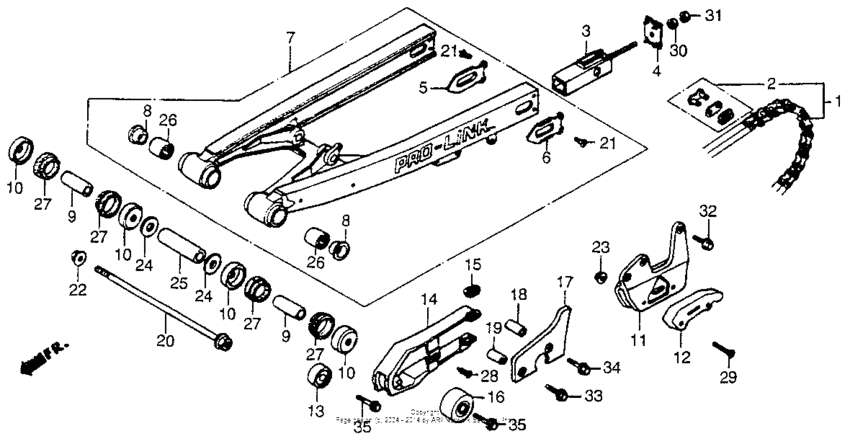

Swingarm 85 Diagram Honda CR250
- Year
- 1985
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*FC700017 - JH2ME030*PC708871
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-KA4-505
Chain, drive
|
405W3-KA4-505 |
— | ||
|
1
|
1
40532-KA4-731 Chain,drive(Optional). |
40532-KA4-731 |
US $106.30 |
||
|
2
|
2
40531-KA4-731
Master link
|
40531-KA4-731 |
— | ||
|
2
|
2
40531-KA4-732
Master link
|
40531-KA4-732 |
— | ||
|
3
|
3
40543-KA3-831
Adjuster, chain
|
40543-KA3-831 |
— | ||
|
4
|
4
40544-KA3-830 Retainer |
40544-KA3-830 |
US $26.28 |
||
|
5
|
5
42307-KA3-830
Washer, rr.
|
42307-KA3-830 |
— | ||
|
6
|
6
42308-KA3-830
Washer, swingarm
|
42308-KA3-830 |
— | ||
|
7
|
7
52000-KA3-831
Fork assy.,rr.
|
52000-KA3-831 |
— | ||
|
8
|
8
52109-KA4-701 Bush, pivot thrust |
52109-KA4-701 |
from US $10.80 |
||
|
9
|
9
52141-KA3-830
Collar, rr. swingarm
|
52141-KA3-830 |
— | ||
|
10
|
10
52144-KA3-731 Cap, dust seal |
52144-KA3-731 |
from US $9.18 |
||
|
11
|
11
52146-KA3-830
Guide, chain
|
52146-KA3-830 |
— | ||
|
12
|
12
52147-KA3-831
Slider, chain guide
|
52147-KA3-831 |
— | ||
|
13
|
13
52158-KA3-831 Roller |
52158-KA3-831 |
from US $46.23 |
||
|
14
|
14
52170-KA3-830
Slider, chain
|
52170-KA3-830 |
— | ||
|
15
|
15
52171-KA3-830 Washer, chain slider |
52171-KA3-830 |
from US $2.59 |
||
|
16
|
16
52175-KA3-831
Roller, chain
|
52175-KA3-831 |
— | ||
|
17
|
17
52180-KA3-830
Splash guard, chain
|
52180-KA3-830 |
— | ||
|
18
|
18
52181-KA3-710
Collar
|
52181-KA3-710 |
— | ||
|
19
|
19
52181-KA3-830
Collar
|
52181-KA3-830 |
— | ||
|
20
|
20
90117-KA3-831
Bolt, rr. swingarm
|
90117-KA3-831 |
— | ||
|
21
|
21
90124-KA3-711 Screw, flat (5x4) |
90124-KA3-711 |
from US $3.40 |
||
|
22
|
22
90301-430-000
Nut, rr.
|
90301-430-000 |
— | ||
|
23
|
23
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
24
|
24
90412-KA4-830
Washer (15.2x33)
|
90412-KA4-830 |
— | ||
|
25
|
25
90515-KA3-830
Collar (18mm)
|
90515-KA3-830 |
— | ||
|
26
|
26
91071-MA0-003 Bearing, rr. |
91071-MA0-003 |
from US $13.74 |
||
|
27
|
27
91253-KA3-731 Dust seal |
91253-KA3-731 |
US $8.73 |
||
|
27
|
27
91253-KA4-701 Dust seal |
91253-KA4-701 |
from US $9.62 |
||
|
28
|
28
93500-050060H Screw, pan, 5x6 |
93500-050060H |
from US $0.37 |
||
|
29
|
29
93600-060400A Screw, flat (6x40) |
93600-060400A |
from US $0.52 |
||
|
30
|
30
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
31
|
31
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
32
|
32
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
33
|
33
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
34
|
34
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
35
|
35
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.81 |
