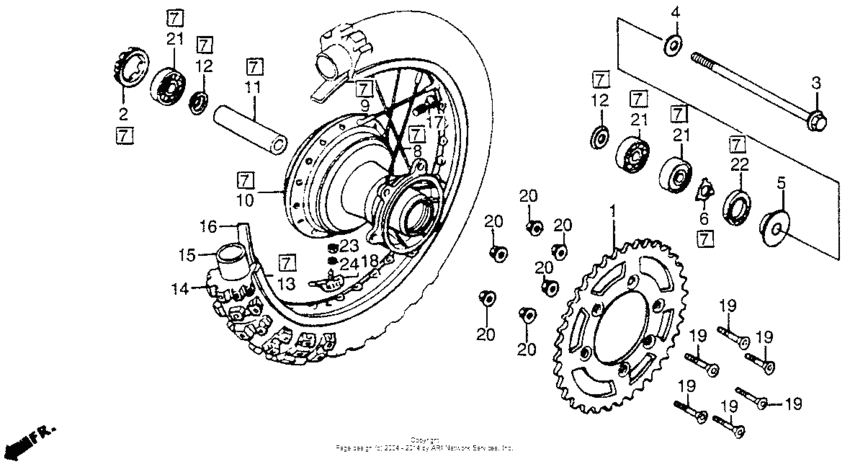

Rr. wheel 84-86 Diagram Honda CR250
- Year
- 1986
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*GC800021 - JH2ME030*GC808068
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41201-KS6-000 Sprocket (51t)(Optional). |
41201-KS6-000 |
US $100.42 |
||
| replacement | |||||
|
1
|
1
41201-MEY-000 Sprocket (51t)(Optional). |
41201-MEY-000 |
from US $104.47 |
||
|
1
|
1
41201-KS6-700 Sprocket (51t)(Optional). |
41201-KS6-700 |
US $100.42 |
||
| replacement | |||||
|
1
|
1
41201-MEY-000 Sprocket (51t)(Optional). |
41201-MEY-000 |
from US $104.47 |
||
|
1
|
1
41201-MEY-000 Sprocket (51t)(Optional). |
41201-MEY-000 |
from US $104.47 |
||
|
1
|
1
41204-KA3-710
Sprocket (51t)
(Optional). |
41204-KA3-710 |
— | ||
|
1
|
1
41201-KS7-000
Sprocket (53t)
|
41201-KS7-000 |
— | ||
| replacement | |||||
|
1
|
1
41201-KZ3-740
Sprocket (53t)
|
41201-KZ3-740 |
— | ||
|
1
|
1
41201-KZ3-740
Sprocket (53t)
(Optional). |
41201-KZ3-740 |
— | ||
|
1
|
1
41203-KS7-305
Sprocket (55t)
(Optional). |
41203-KS7-305 |
— | ||
|
1
|
1
41204-KS7-305
Sprocket,final (d
(Optional). |
41204-KS7-305 |
— | ||
|
2
|
2
41231-KA3-710
Retainer, rr.
|
41231-KA3-710 |
— | ||
|
3
|
3
42301-KA3-831
Axle, rr. wheel
|
42301-KA3-831 |
— | ||
|
4
|
4
42306-KA3-830
Collar, rr. axle
|
42306-KA3-830 |
— | ||
|
5
|
5
42311-KS6-700
Colr, rr. wheel side
|
42311-KS6-700 |
— | ||
|
6
|
6
42312-KA3-730
Washer, rr.
|
42312-KA3-730 |
— | ||
|
7
|
7
426A5-KS7-010
Rim assy., rr. wheel
|
426A5-KS7-010 |
— | ||
|
8
|
8
42610-KS7-305
Spoke set a, rr.
|
42610-KS7-305 |
— | ||
|
9
|
9
42611-KS7-305
Spoke set b, rr.
|
42611-KS7-305 |
— | ||
|
10
|
10
42601-KS7-000ZA
Hub, rr. *nh105*
|
42601-KS7-000ZA |
— | ||
|
11
|
11
42620-KS7-000
Collar, rr.
|
42620-KS7-000 |
— | ||
|
12
|
12
42621-KA3-711
Cap, distance collar
|
42621-KA3-711 |
— | ||
|
13
|
13
42701-KS7-003
Rim, rr. wheel
|
42701-KS7-003 |
— | ||
|
14
|
14
42711-KS7-671
Tire (110/100-18)
|
42711-KS7-671 |
— | ||
|
15
|
15
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
15
|
15
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
16
|
16
42713-KS6-003
Flap, tire
|
42713-KS6-003 |
— | ||
|
17
|
17
42714-KA3-710 Cap, valve |
42714-KA3-710 |
from US $6.22 |
||
|
18
|
18
42715-MA0-770 Stopper, bead (2.15) |
42715-MA0-770 |
from US $46.19 |
||
|
19
|
19
90125-KA3-700 Screw, flat (8x29) |
90125-KA3-700 |
from US $5.03 |
||
|
20
|
20
90309-357-000 Nut, hex., 8mm |
90309-357-000 |
from US $5.03 |
||
|
21
|
21
91061-KA4-701
Bearing (6004tm)
|
91061-KA4-701 |
— | ||
|
22
|
22
91257-MAY-003 Dust seal (28x42x8) |
91257-MAY-003 |
from US $5.27 |
||
|
23
|
23
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
24
|
24
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
