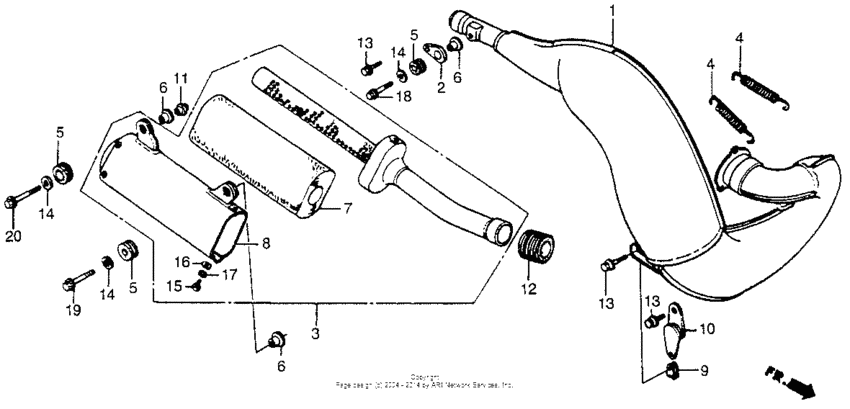

Muffler 88 Diagram Honda CR250
- Year
- 1988
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*JM000001 - JH2ME030*JM004826
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KS7-830
Chamber comp.,ex.
|
18300-KS7-830 |
— | ||
|
2
|
2
18325-KS6-000 Stay, rr. chamber |
18325-KS6-000 |
from US $15 |
||
|
3
|
3
18330-KS7-830
Silencer comp
|
18330-KS7-830 |
— | ||
|
4
|
4
18332-KS7-830 Spring, ex. pipe |
18332-KS7-830 |
from US $8.29 |
||
|
5
|
5
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
6
|
6
18336-KS6-700 Collar, muff mt |
18336-KS6-700 |
from US $6.07 |
||
|
7
|
7
18340-KS7-830
Wool,glass
|
18340-KS7-830 |
— | ||
|
8
|
8
18350-KS7-830
Body comp,silense
|
18350-KS7-830 |
— | ||
|
9
|
9
18354-KS6-000 Nut, muffler spring |
18354-KS6-000 |
from US $4.29 |
||
|
10
|
10
18355-KS6-000 Stay, chamber |
18355-KS6-000 |
from US $16.14 |
||
|
11
|
11
18356-KS6-000
Collar, muffler
|
18356-KS6-000 |
— | ||
|
12
|
12
18365-KA4-730 Rubber |
18365-KA4-730 |
from US $10.91 |
||
|
13
|
13
90102-KS6-000 Bolt-washer (6x16) |
90102-KS6-000 |
from US $5.77 |
||
|
14
|
14
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
15
|
15
92301-05010-0A Bolt (5x10) |
92301-05010-0A |
from US $0.44 |
||
|
16
|
16
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
17
|
17
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
18
|
18
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
18
|
18
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
18
|
18
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
19
|
19
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
20
|
20
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
