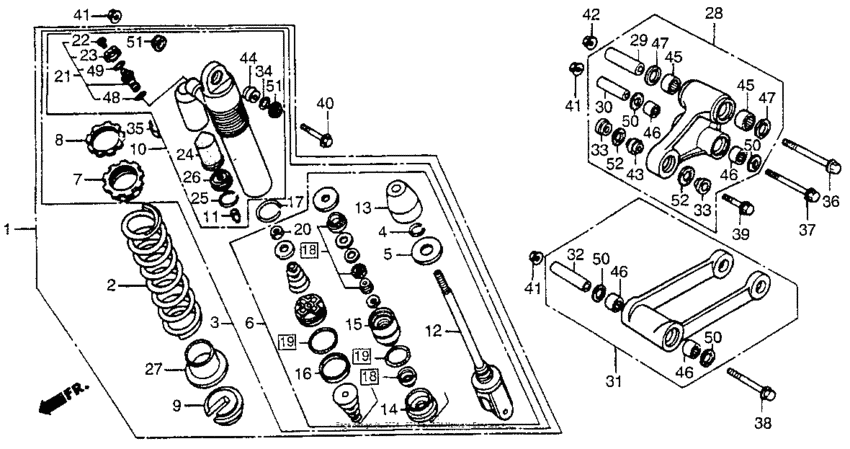

Shock absorber 88 Diagram Honda CR250
- Year
- 1988
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*JM000001 - JH2ME030*JM004826
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KS7-841
Shock absorber, rr.
|
52400-KS7-841 |
— | ||
|
2
|
2
52401-KS7-831
Spring (5.6kg/mm)
|
52401-KS7-831 |
— | ||
|
2
|
2
52403-KS7-305
Spring,rr.cush.
(Optional). |
52403-KS7-305 |
— | ||
|
3
|
3
52410-KS7-841
Damper, rr.
|
52410-KS7-841 |
— | ||
|
4
|
4
52418-KA4-831
Ring c, stopper
|
52418-KA4-831 |
— | ||
|
5
|
5
52419-KS7-701
Washer
|
52419-KS7-701 |
— | ||
|
6
|
6
52421-KS7-831
Rod comp.piston
|
52421-KS7-831 |
— | ||
|
7
|
7
52422-KS7-701 Adjuster, spring |
52422-KS7-701 |
from US $18.46 |
||
|
8
|
8
52423-KS7-701 Nut, adjuster |
52423-KS7-701 |
from US $14.08 |
||
|
9
|
9
52424-KS7-701
Stopper, spring seat
|
52424-KS7-701 |
— | ||
|
10
|
10
52425-KS7-831
Case comp.,damper
|
52425-KS7-831 |
— | ||
|
11
|
11
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
12
|
12
52426-KS7-831
Rod comp.(showa)
|
52426-KS7-831 |
— | ||
|
13
|
13
52427-KS7-701
Rubber, stopper
|
52427-KS7-701 |
— | ||
|
14
|
14
52428-KA4-832
Plate, end
|
52428-KA4-832 |
— | ||
|
15
|
15
52429-ML3-841
Case, rod guide
|
52429-ML3-841 |
— | ||
|
16
|
16
52431-KA4-831 Ring, piston |
52431-KA4-831 |
from US $14.42 |
||
|
17
|
17
52435-KS7-831 Ring, stopper |
52435-KS7-831 |
US $3.09 |
||
|
18
|
18
52436-ML3-305
Oil seal set
|
52436-ML3-305 |
— | ||
|
19
|
19
52437-KA4-841 O-ring set |
52437-KA4-841 |
from US $10.66 |
||
|
20
|
20
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
|
21
|
21
52440-KS7-831
Bolt.comp.plug
|
52440-KS7-831 |
— | ||
|
22
|
22
52448-KS7-003
Screw
|
52448-KS7-003 |
— | ||
|
23
|
23
52449-ML3-841
Plate b, adjusting
|
52449-ML3-841 |
— | ||
|
24
|
24
52451-KS7-831 Bladder |
52451-KS7-831 |
from US $15.78 |
||
|
25
|
25
52452-KS7-831 Ring, stopper |
52452-KS7-831 |
from US $2.59 |
||
|
26
|
26
52453-KS7-831 Cap, chamber |
52453-KS7-831 |
from US $31.68 |
||
|
27
|
27
52458-KS7-701
Seat, spring
|
52458-KS7-701 |
— | ||
|
28
|
28
52460-KS7-832
Arm assy,cushion
|
52460-KS7-832 |
— | ||
|
29
|
29
52463-KS7-830
Collar,cush arm p
|
52463-KS7-830 |
— | ||
|
30
|
30
52464-KS7-830
Collar,cush arm
|
52464-KS7-830 |
— | ||
|
31
|
31
52470-KS7-832
Rod assy,cush con
|
52470-KS7-832 |
— | ||
|
32
|
32
52473-KS7-830
Collar,conn rod,p
|
52473-KS7-830 |
— | ||
|
33
|
33
52486-KS7-830
Collar,cushion ar
|
52486-KS7-830 |
— | ||
|
34
|
34
52487-KA4-831 Ring, stopper |
52487-KA4-831 |
from US $2.74 |
||
|
35
|
35
87516-KS7-771
Label, rr.
|
87516-KS7-771 |
— | ||
|
36
|
36
90128-KA4-003
Bolt, flange, 12x105
|
90128-KA4-003 |
— | ||
|
37
|
37
90102-KBS-900
Bolt, flange (10x90)
|
90102-KBS-900 |
— | ||
|
37
|
37
90129-KS7-832 Bolt,flange,10x90Use up to Frame SN JM004557 |
90129-KS7-832 |
US $5.76 |
||
|
38
|
38
90130-KS7-832
Bolt,flange,10x10
Use up to Frame SN JM004557 |
90130-KS7-832 |
— | ||
|
39
|
39
90153-KS7-830
Bolt, flange (10x38)
|
90153-KS7-830 |
— | ||
|
40
|
40
90154-KA3-830 Bolt, flange (10x52) |
90154-KA3-830 |
US $5.33 |
||
|
41
|
41
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
42
|
42
90306-181-761 Nut, flange (12mm) |
90306-181-761 |
from US $3.70 |
||
|
43
|
43
91077-GC4-831
R/brg sph n/com
|
91077-GC4-831 |
— | ||
|
44
|
44
91077-KS7-013 Bearing (10.1mm) |
91077-KS7-013 |
from US $13.74 |
||
|
45
|
45
91078-KS7-833
Needle brg
|
91078-KS7-833 |
— | ||
|
46
|
46
91079-KS7-832
Needle brg
|
91079-KS7-832 |
— | ||
|
47
|
47
91254-KS6-003 Dust seal |
91254-KS6-003 |
from US $2.99 |
||
|
48
|
48
91256-GE2-003 O-ring (19.8x2.4) |
91256-GE2-003 |
US $3.55 |
||
|
49
|
49
91256-ML3-841 O-ring (13.5x1.5) |
91256-ML3-841 |
US $4.40 |
||
|
50
|
50
91261-KB7-981
Dust seal (18x25x5)
|
91261-KB7-981 |
— | ||
|
51
|
51
91351-KS7-003 Dust seal, rr. shock |
91351-KS7-003 |
from US $3.26 |
||
|
52
|
52
91351-KS7-831
Dust seal,cushion
|
91351-KS7-831 |
— |
