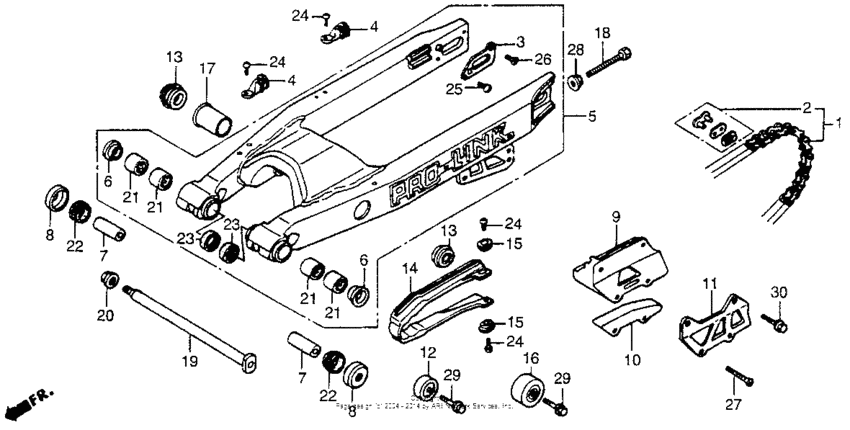

Swingarm 88 Diagram Honda CR250
- Year
- 1988
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*JM000001 - JH2ME030*JM004826
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405W3-KA4-505
Chain, drive
(Optional). |
405W3-KA4-505 |
— | ||
|
1
|
1
405W3-KA5-505
Chain, drive
|
405W3-KA5-505 |
— | ||
|
2
|
2
40531-KA4-731
Master link
|
40531-KA4-731 |
— | ||
|
2
|
2
40531-KA4-732
Master link
|
40531-KA4-732 |
— | ||
|
3
|
3
42307-KS6-830
Washer, rr. swingarm
|
42307-KS6-830 |
— | ||
|
4
|
4
43468-KS6-700 Guide, rr. |
43468-KS6-700 |
from US $10.51 |
||
|
5
|
5
52000-KS7-830
Fork assy.,rr.
|
52000-KS7-830 |
— | ||
|
6
|
6
52109-KS7-830
Bush, pivot thrust
|
52109-KS7-830 |
— | ||
|
7
|
7
52141-KS7-830
Collar, rr. swingarm
|
52141-KS7-830 |
— | ||
|
8
|
8
52144-KS7-831
Cap, dust seal
|
52144-KS7-831 |
— | ||
|
9
|
9
52146-KS6-700
Guide, chain
|
52146-KS6-700 |
— | ||
|
10
|
10
52147-KS6-701 Slider, chain guide |
52147-KS6-701 |
from US $17.41 |
||
|
11
|
11
52156-KS6-700
Plate, chain guide
|
52156-KS6-700 |
— | ||
|
12
|
12
52158-KA3-831 Roller |
52158-KA3-831 |
from US $46.23 |
||
|
13
|
13
52161-KS7-831 Cap, rr. |
52161-KS7-831 |
from US $5.48 |
||
|
14
|
14
52170-KS7-830 Slider, chain |
52170-KS7-830 |
from US $37.67 |
||
|
15
|
15
52171-KR6-000 Washer, chain slider |
52171-KR6-000 |
from US $2.44 |
||
|
16
|
16
52175-KA3-831
Roller, chain
|
52175-KA3-831 |
— | ||
|
17
|
17
52190-KS7-830
Collar, guide
|
52190-KS7-830 |
— | ||
|
18
|
18
90106-KS6-700 Bolt, hex. (8x49) |
90106-KS6-700 |
from US $5.33 |
||
|
19
|
19
90117-KS7-831 Bolt, rr. swingarm |
90117-KS7-831 |
from US $29 |
||
|
20
|
20
90301-KS7-830 Nut, rr. |
90301-KS7-830 |
from US $7.70 |
||
|
21
|
21
91071-KS7-831 Bearing (22x28x20) |
91071-KS7-831 |
US $21.30 |
||
|
22
|
22
91253-KS7-831
Dust seal
|
91253-KS7-831 |
— | ||
|
23
|
23
91254-KS7-831 Dust seal (22x28x5) |
91254-KS7-831 |
from US $6.81 |
||
|
24
|
24
93500-050-080-A ScrewPAN, 5X8 |
93500-050-080-A |
from US $0.37 |
||
|
25
|
25
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
26
|
26
93600-050-100-A Screw, flat, 5x10 |
93600-050-100-A |
from US $0.37 |
||
|
27
|
27
93600-060400A Screw, flat (6x40) |
93600-060400A |
from US $0.52 |
||
|
28
|
28
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
29
|
29
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.81 |
||
|
30
|
30
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
