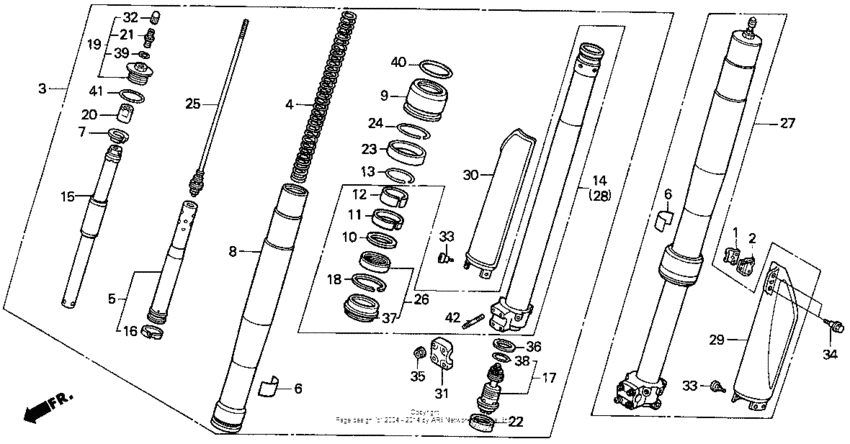

Front fork 90 Diagram Honda CR250
- Year
- 1990
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*LM200013 - JH2ME030*LM203598
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45461-KA3-710 Clamp a, fr. |
45461-KA3-710 |
from US $8.55 |
||
|
2
|
2
45462-KA3-710 Clamp b, fr. |
45462-KA3-710 |
from US $6.38 |
||
|
3
|
3
51400-KZ3-771
Fork assy., r. fr.
|
51400-KZ3-771 |
— | ||
|
4
|
4
51401-KZ3-701
Spring, fr. fork
|
51401-KZ3-701 |
— | ||
|
4
|
4
51401-KZ4-701
Spring, fr. fork
(Optional). |
51401-KZ4-701 |
— | ||
|
4
|
4
51401-ML3-921
Spring (0.40kg/mm)
(Optional). |
51401-ML3-921 |
— | ||
|
5
|
5
51404-KZ3-701
Collar, spring
|
51404-KZ3-701 |
— | ||
|
6
|
6
51405-ML3-911
Label
|
51405-ML3-911 |
— | ||
|
7
|
7
51406-ML3-911
Stopper, spring seat
|
51406-ML3-911 |
— | ||
|
8
|
8
51410-KZ3-701
Tube (outer)
|
51410-KZ3-701 |
— | ||
|
9
|
9
51411-KZ3-701
Case, oil seal
|
51411-KZ3-701 |
— | ||
|
10
|
10
51412-KZ3-003 Ring, back-up |
51412-KZ3-003 |
from US $4.09 |
||
|
11
|
11
51414-KZ3-701 Bush, guide |
51414-KZ3-701 |
from US $11.99 |
||
|
12
|
12
51415-MCH-003 Bush, slider |
51415-MCH-003 |
from US $14.48 |
||
|
13
|
13
51419-KZ3-003
Ring, stopper
|
51419-KZ3-003 |
— | ||
|
14
|
14
51420-KZ3-701
Pipe, r. slide
|
51420-KZ3-701 |
— | ||
|
15
|
15
51431-KZ3-701
Cylinder
|
51431-KZ3-701 |
— | ||
|
16
|
16
51435-KZ3-701
Ring, piston
|
51435-KZ3-701 |
— | ||
|
17
|
17
51441-KZ3-701
Bolt, center
|
51441-KZ3-701 |
— | ||
|
18
|
18
51447-KZ3-003 Ring |
51447-KZ3-003 |
from US $2.03 |
||
|
19
|
19
51450-KZ3-003
Bolt assy., fr. fork
|
51450-KZ3-003 |
— | ||
|
20
|
20
51451-KZ3-003
Nut, lock (10mm)
|
51451-KZ3-003 |
— | ||
|
21
|
21
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
22
|
22
51461-KZ3-003
Cap, fr. fork
|
51461-KZ3-003 |
— | ||
|
23
|
23
51475-KZ3-013
Slider
|
51475-KZ3-013 |
— | ||
|
24
|
24
51476-KZ3-003 Ring, stopper |
51476-KZ3-003 |
US $3.74 |
||
|
25
|
25
51480-KZ3-701
Rod, piston
|
51480-KZ3-701 |
— | ||
|
26
|
26
51490-KZ3-810 Seal set, fr. fork |
51490-KZ3-810 |
US $28.17 |
||
|
27
|
27
51500-KZ3-771
Fork Assy., L. Fr.
|
51500-KZ3-771 |
— | ||
|
28
|
28
51520-KZ3-701
Case, l. slide
|
51520-KZ3-701 |
— | ||
|
29
|
29
51610-ML3-910
Protr, l. fr. fork
|
51610-ML3-910 |
— | ||
|
30
|
30
51620-KZ3-010
Protr, r. fr. fork
|
51620-KZ3-010 |
— | ||
|
31
|
31
51634-MV1-003
Holder, axle
|
51634-MV1-003 |
— | ||
|
32
|
32
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
33
|
33
90106-KZ3-000 Bolt, disk (6x13) |
90106-KZ3-000 |
from US $3.03 |
||
|
34
|
34
90113-KZ3-000 Bolt, flange, 6mm |
90113-KZ3-000 |
from US $2.66 |
||
|
35
|
35
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
36
|
36
90544-KZ3-003 Washer, special |
90544-KZ3-003 |
from US $2.44 |
||
|
37
|
37
91254-KZ3-003 Dust seal |
91254-KZ3-003 |
from US $13.22 |
||
|
38
|
38
91256-GC5-003 O-ring (15.5x1.5) |
91256-GC5-003 |
from US $2 |
||
|
39
|
39
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
40
|
40
91360-SM4-003 O-ring54.5X2.4 (NOK) |
91360-SM4-003 |
from US $3.43 |
||
|
41
|
41
91356-KZ3-003 O-ring (44.7x2.4) |
91356-KZ3-003 |
from US $1.82 |
||
|
42
|
42
92900-06025-0E Bolt, stud (6x25) |
92900-06025-0E |
from US $0.59 |
