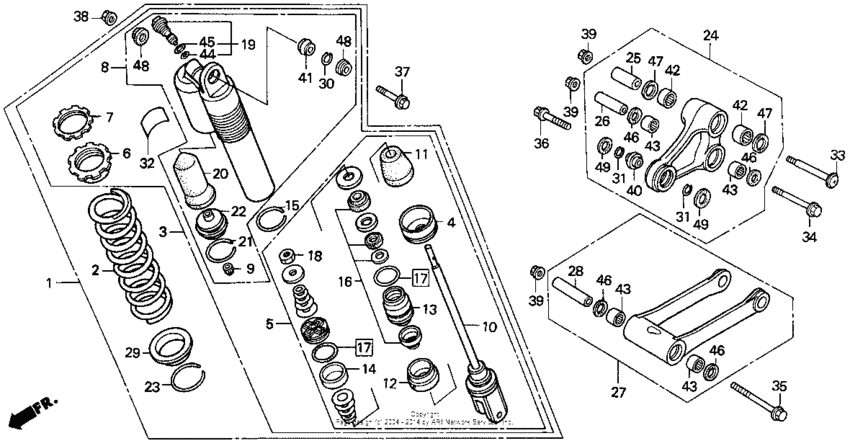

Rear shock absorber 90 Diagram Honda CR250
- Year
- 1990
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*LM200013 - JH2ME030*LM203598
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZ3-771
Shock assy., rr.
|
52400-KZ3-771 |
— | ||
|
2
|
2
52401-KZ3-701
Spring (5.2kg/mm)
|
52401-KZ3-701 |
— | ||
|
2
|
2
52401-ML3-921
Spring (5.6kg/mm)
(Optional). |
52401-ML3-921 |
— | ||
|
2
|
2
52402-KZ3-831
Spring (4.8kg/mm)
(Optional). |
52402-KZ3-831 |
— | ||
|
3
|
3
52410-KZ3-771
Damper, rr.
|
52410-KZ3-771 |
— | ||
|
4
|
4
52419-KZ3-003
Stopper, spring seat
|
52419-KZ3-003 |
— | ||
|
5
|
5
52421-KZ3-771
Rod, piston
|
52421-KZ3-771 |
— | ||
|
6
|
6
52422-KS7-701 Adjuster, spring |
52422-KS7-701 |
from US $18.46 |
||
|
7
|
7
52423-KS7-701 Nut, adjuster |
52423-KS7-701 |
from US $14.08 |
||
|
8
|
8
52425-KZ3-003
Case, shock absorber
|
52425-KZ3-003 |
— | ||
|
9
|
9
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
10
|
10
52426-KZ3-701
Rod
|
52426-KZ3-701 |
— | ||
|
11
|
11
52427-KZ3-003 Rubber, stopper |
52427-KZ3-003 |
from US $9.32 |
||
|
12
|
12
52428-KA4-832
Plate, end
|
52428-KA4-832 |
— | ||
|
13
|
13
52429-ML3-841
Case, rod guide
|
52429-ML3-841 |
— | ||
|
14
|
14
52431-KA4-831 Ring, piston |
52431-KA4-831 |
from US $14.42 |
||
|
15
|
15
52435-KS7-831 Ring, stopper |
52435-KS7-831 |
US $3.09 |
||
|
16
|
16
52436-ML3-305
Oil seal set
|
52436-ML3-305 |
— | ||
|
17
|
17
52437-KA4-841 O-ring set |
52437-KA4-841 |
from US $10.66 |
||
|
18
|
18
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
|
19
|
19
52440-KZ3-003
Bolt, plug
|
52440-KZ3-003 |
— | ||
|
20
|
20
52451-KS7-831 Bladder |
52451-KS7-831 |
from US $15.78 |
||
|
21
|
21
52452-KS7-831 Ring, stopper |
52452-KS7-831 |
from US $2.59 |
||
|
22
|
22
52453-KS7-831 Cap, chamber |
52453-KS7-831 |
from US $31.68 |
||
|
23
|
23
52455-MM5-003 Ring, stopper |
52455-MM5-003 |
from US $7.55 |
||
|
24
|
24
52460-KZ3-702
Arm, shock absorber
|
52460-KZ3-702 |
— | ||
|
25
|
25
52463-KZ4-000
Collar
|
52463-KZ4-000 |
— | ||
|
26
|
26
52464-KZ4-000
Collar, cushion arm
|
52464-KZ4-000 |
— | ||
|
27
|
27
52470-KZ3-702
Rod assy
|
52470-KZ3-702 |
— | ||
|
28
|
28
52473-KZ4-000
Collar
|
52473-KZ4-000 |
— | ||
|
29
|
29
52486-KZ3-003 Seat, spring |
52486-KZ3-003 |
US $19.87 |
||
|
30
|
30
52487-KA4-831 Ring, stopper |
52487-KA4-831 |
from US $2.74 |
||
|
31
|
31
52487-KN5-000 Ring, stopper |
52487-KN5-000 |
from US $2.37 |
||
|
32
|
32
87516-KZ3-671
Label, rr.
|
87516-KZ3-671 |
— | ||
|
33
|
33
90128-KZ4-010
Bolt, flg (14x108)
|
90128-KZ4-010 |
— | ||
|
34
|
34
90129-KZ4-010
Bolt, flange (12x92)
|
90129-KZ4-010 |
— | ||
|
35
|
35
90130-KZ3-700
Bolt, flg (12x118.5)
|
90130-KZ3-700 |
— | ||
|
36
|
36
90153-KS7-830
Bolt, flange (10x38)
|
90153-KS7-830 |
— | ||
|
37
|
37
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
38
|
38
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
39
|
39
90306-181-761 Nut, flange (12mm) |
90306-181-761 |
from US $3.70 |
||
|
40
|
40
91074-KS7-831
Bearing (10)
|
91074-KS7-831 |
— | ||
|
41
|
41
91077-KS7-013 Bearing (10.1mm) |
91077-KS7-013 |
from US $13.74 |
||
|
42
|
42
91078-KS7-836
Bearing (22x28x16)
|
91078-KS7-836 |
— | ||
|
43
|
43
91079-KZ3-731 Bearing (20x26x20) |
91079-KZ3-731 |
US $29.51 |
||
|
44
|
44
91256-GC5-003 O-ring (15.5x1.5) |
91256-GC5-003 |
from US $2 |
||
|
45
|
45
91257-KZ3-003 O-ring (21x1.9) |
91257-KZ3-003 |
from US $1.78 |
||
|
46
|
46
91261-KS7-832
Dust seal (20x28x5)
|
91261-KS7-832 |
— | ||
|
47
|
47
91262-KS7-831
Dust seal (22x30x5)
|
91262-KS7-831 |
— | ||
|
48
|
48
91351-KS7-003 Dust seal, rr. shock |
91351-KS7-003 |
from US $3.26 |
||
|
49
|
49
91351-KS7-832
Dust seal, shock
|
91351-KS7-832 |
— |
