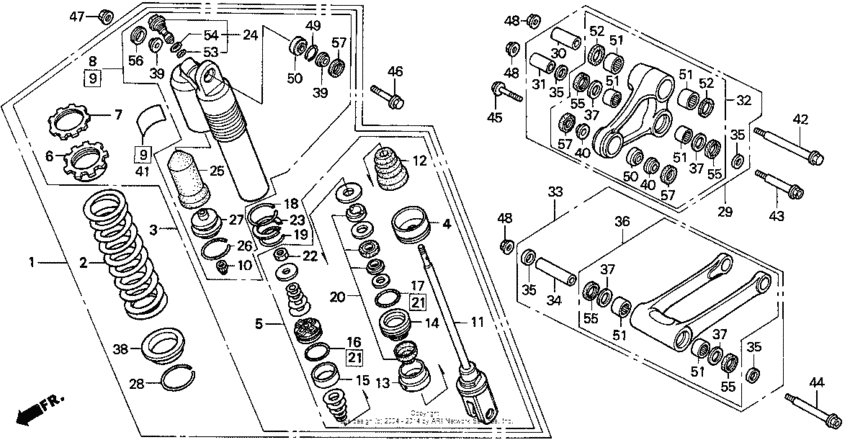

Rear shock absorber 92-93 Diagram Honda CR250
- Year
- 1993
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*PM500015 - JH2ME030*PM504128
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZ3-901
Shock assy., rr.
|
52400-KZ3-901 |
— | ||
|
2
|
2
52401-KZ3-861
Spring (5.0kgf/mm)
|
52401-KZ3-861 |
— | ||
|
2
|
2
52402-KZ3-801
Spring (4.6kgf/mm)
(Optional). |
52402-KZ3-801 |
— | ||
|
2
|
2
52403-KZ3-831 Spring (5.4kgf/mm)(Optional). |
52403-KZ3-831 |
US $153.09 |
||
|
3
|
3
52410-KZ3-901
Damper, rr.
|
52410-KZ3-901 |
— | ||
|
4
|
4
52419-KZ3-003
Stopper, spring seat
|
52419-KZ3-003 |
— | ||
|
5
|
5
52421-KZ3-891
Rod, piston
|
52421-KZ3-891 |
— | ||
|
6
|
6
52422-KS7-701 Adjuster, spring |
52422-KS7-701 |
from US $18.46 |
||
|
7
|
7
52423-KS7-701 Nut, adjuster |
52423-KS7-701 |
from US $14.08 |
||
|
9
|
9
52425-KZ3-901
Case, shock absorber
|
52425-KZ3-901 |
— | ||
|
10
|
10
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
11
|
11
52426-KZ3-891
Rod
|
52426-KZ3-891 |
— | ||
|
12
|
12
52427-KZ3-891 Rubber, stopper |
52427-KZ3-891 |
from US $13.17 |
||
|
13
|
13
52428-KZ3-891
Plate, end
|
52428-KZ3-891 |
— | ||
|
14
|
14
52429-KZ3-891
Case, rod guide
|
52429-KZ3-891 |
— | ||
|
15
|
15
52431-KZ3-861 Ring, piston |
52431-KZ3-861 |
US $11.99 |
||
|
16
|
16
52432-KZ3-861 O-ring (39.5x2.0) |
52432-KZ3-861 |
from US $2.96 |
||
|
17
|
17
52434-KZ3-861 O-ring (39.7x3.5) |
52434-KZ3-861 |
from US $3.92 |
||
|
18
|
18
52435-KZ3-861 Ring, stopper |
52435-KZ3-861 |
US $2.59 |
||
|
19
|
19
52436-KZ3-861
Ring b, stopper
|
52436-KZ3-861 |
— | ||
|
20
|
20
52436-KZ3-305 Oil seal set |
52436-KZ3-305 |
from US $26.79 |
||
|
22
|
22
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
|
23
|
23
52439-KZ3-861
Stopper
|
52439-KZ3-861 |
— | ||
|
24
|
24
52440-KZ3-891
Bolt, plug
|
52440-KZ3-891 |
— | ||
|
25
|
25
52451-KZ3-891 Bladder |
52451-KZ3-891 |
from US $17.95 |
||
|
26
|
26
52452-KS7-831 Ring, stopper |
52452-KS7-831 |
from US $2.59 |
||
|
27
|
27
52453-KS7-831 Cap, chamber |
52453-KS7-831 |
from US $31.68 |
||
|
28
|
28
52455-MM5-003 Ring, stopper |
52455-MM5-003 |
from US $7.55 |
||
|
30
|
30
52463-KZ3-860
Collar
|
52463-KZ3-860 |
— | ||
|
31
|
31
52464-KZ3-860
Collar, shock arm
|
52464-KZ3-860 |
— | ||
|
32
|
32
52465-KZ4-305
Arm set, shock
|
52465-KZ4-305 |
— | ||
|
34
|
34
52473-KZ3-860 Collar, conn rod |
52473-KZ3-860 |
US $20.14 |
||
|
35
|
35
52475-KZ3-860 Collar |
52475-KZ3-860 |
from US $7.99 |
||
|
36
|
36
52475-KZ4-305
Rod set
|
52475-KZ4-305 |
— | ||
|
37
|
37
52476-KZ3-860 Washer, thrust |
52476-KZ3-860 |
from US $9.92 |
||
|
38
|
38
52486-KZ3-003 Seat, spring |
52486-KZ3-003 |
US $19.87 |
||
|
39
|
39
52486-KZ3-730
Collar, shock pivot
|
52486-KZ3-730 |
— | ||
|
40
|
40
52486-ML3-790 Collar, shock pivot |
52486-ML3-790 |
US $4.93 |
||
|
41
|
41
87516-KZ1-600 Label, rr. |
87516-KZ1-600 |
from US $4.29 |
||
|
42
|
42
90128-ML3-600
Bolt (15x202)
|
90128-ML3-600 |
— | ||
|
43
|
43
90129-KZ3-861
Bolt (15x87)
|
90129-KZ3-861 |
— | ||
|
44
|
44
90130-KZ3-861
Bolt (15x109.5)
|
90130-KZ3-861 |
— | ||
|
45
|
45
90153-KS7-830
Bolt, flange (10x38)
|
90153-KS7-830 |
— | ||
|
46
|
46
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
47
|
47
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
48
|
48
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
49
|
49
90613-PF4-300 Ring, snap (26mm) |
90613-PF4-300 |
from US $2.55 |
||
|
50
|
50
91074-KZ4-901
Bearing (10)
|
91074-KZ4-901 |
— | ||
|
51
|
51
91078-KZ3-731 Bearing (22x28x16) |
91078-KZ3-731 |
from US $11.99 |
||
|
52
|
52
91254-KS7-831 Dust seal (22x28x5) |
91254-KS7-831 |
from US $6.81 |
||
|
53
|
53
91256-KZ3-731 O-ring (21.5x1.5) |
91256-KZ3-731 |
from US $1.92 |
||
|
54
|
54
91257-KZ3-891 O-ring (26.2x1.9) |
91257-KZ3-891 |
from US $2.22 |
||
|
55
|
55
91261-KZ3-861 Dust seal (27x34x4) |
91261-KZ3-861 |
from US $5.92 |
||
|
56
|
56
91351-GS2-701 Dust seal, shock |
91351-GS2-701 |
from US $3.70 |
||
|
57
|
57
91351-KZ3-731 Dust seal, shock |
91351-KZ3-731 |
from US $3.48 |
