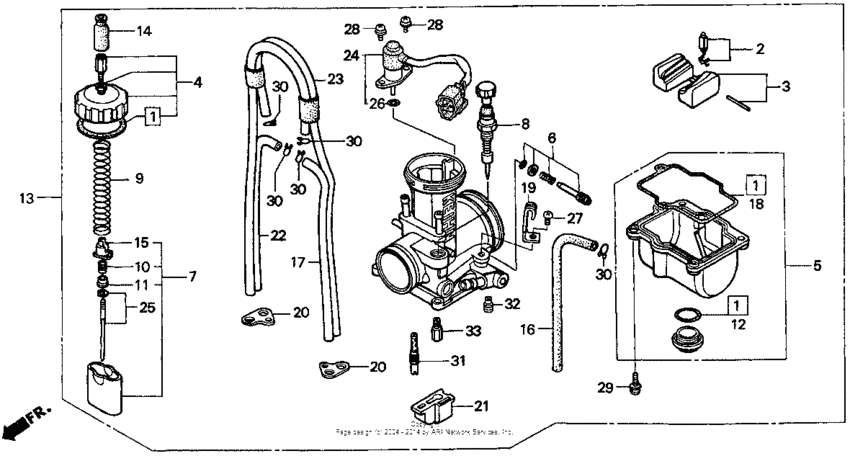

Carburetor 97-98 Diagram Honda CR250
- Year
- 1997
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*VM900001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KZ3-B10
Gasket set
|
16010-KZ3-B10 |
— | ||
|
2
|
2
16011-KA3-741 Valve set, float |
16011-KA3-741 |
from US $44.34 |
||
|
3
|
3
16013-HA2-671 Float set |
16013-HA2-671 |
from US $37.04 |
||
|
4
|
4
16014-KA5-691 Top set |
16014-KA5-691 |
US $41.84 |
||
|
5
|
5
16015-KZ3-B10
Chamber set, float
|
16015-KZ3-B10 |
— | ||
|
6
|
6
16016-ML3-910 Screw set a |
16016-ML3-910 |
US $28.78 |
||
|
7
|
7
16022-KZ3-690 Valve set, throttle |
16022-KZ3-690 |
US $118.14 |
||
|
8
|
8
16046-KS7-004 Valve set, starter |
16046-KS7-004 |
US $79.87 |
||
|
9
|
9
16050-KA5-691
Spring, compression
|
16050-KA5-691 |
— | ||
|
10
|
10
16051-KA3-761 Spring |
16051-KA3-761 |
US $19.21 |
||
|
11
|
11
16066-KA3-761 Colr, spring setting |
16066-KA3-761 |
from US $3.09 |
||
|
12
|
12
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
13
|
13
16100-KZ3-B11
Carburetor (pj28l a)
|
16100-KZ3-B11 |
— | ||
|
14
|
14
16118-166-004 Cap, cable sealing |
16118-166-004 |
from US $5.77 |
||
|
15
|
15
16137-KA3-761
Holder, cable
|
16137-KA3-761 |
— | ||
|
16
|
16
16199-KZ3-505
Tube,over flow
|
16199-KZ3-505 |
— | ||
|
17
|
17
16198-KZ3-P00 Tube,4x7x390 |
16198-KZ3-P00 |
from US $2.50 |
||
|
18
|
18
16163-KZ3-B10
Gasket
|
16163-KZ3-B10 |
— | ||
|
19
|
19
16179-KM1-003 Clip, plate |
16179-KM1-003 |
from US $8.16 |
||
|
20
|
20
16179-KZ4-690 Binder |
16179-KZ4-690 |
from US $8.01 |
||
|
21
|
21
16185-KA3-761
Plate, buffer
|
16185-KA3-761 |
— | ||
|
22
|
22
16198-KZ3-P00 Tube,4x7x390 |
16198-KZ3-P00 |
from US $2.50 |
||
|
23
|
23
16199-KZ3-B10
Tube, air vent
|
16199-KZ3-B10 |
— | ||
|
24
|
24
16200-KZ3-B01
Valve, solenoid
|
16200-KZ3-B01 |
— | ||
|
25
|
25
16203-KZ3-690
Ndl, jet (r1369ms)
|
16203-KZ3-690 |
— | ||
|
26
|
26
16206-KZ3-B01
O-ring
|
16206-KZ3-B01 |
— | ||
|
27
|
27
93500-040-060-A ScrewPAN, 4X6 |
93500-040-060-A |
from US $0.37 |
||
|
28
|
28
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
29
|
29
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
30
|
30
9500202079 Clip, tube (b7) |
9500202079 |
from US $0.47 |
||
|
31
|
31
99103-3990550 Jet, slow (#55) |
99103-3990550 |
from US $6.84 |
||
|
32
|
32
99105-KZ30420 Jet, power (#42) |
99105-KZ30420 |
from US $6.51 |
||
|
33
|
33
99101-3571750 Jet, main (#175) |
99101-3571750 |
from US $7 |
