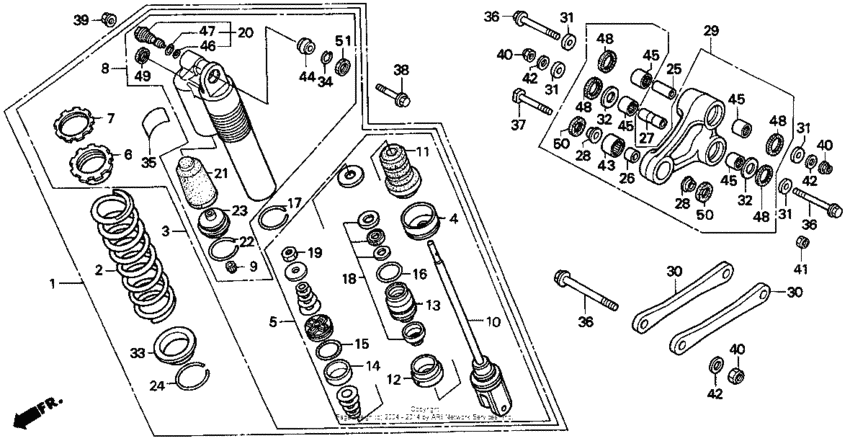

Rear shock absorber 97 Diagram Honda CR250
- Year
- 1997
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*VM900001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KZ3-B91
Shock absorber, rr.
|
52400-KZ3-B91 |
— | ||
|
2
|
2
52401-KZ3-B01 Spring (5.3kgf/mm) |
52401-KZ3-B01 |
US $178.99 |
||
|
2
|
2
52402-KZ3-B01 Spring (5.10kgf/mm)(Optional). |
52402-KZ3-B01 |
US $157.05 |
||
|
2
|
2
52403-KZ3-B01 Spring (5.5kgf/mm)(Optional). |
52403-KZ3-B01 |
US $161.18 |
||
|
3
|
3
52410-KZ3-B91 Damper, rr. |
52410-KZ3-B91 |
US $809.08 |
||
|
4
|
4
52419-KZ3-B01 Stopper, spring seat |
52419-KZ3-B01 |
US $19.28 |
||
|
5
|
5
52421-KZ3-B91
Rod, piston
|
52421-KZ3-B91 |
— | ||
|
6
|
6
52422-KS7-701 Adjuster, spring |
52422-KS7-701 |
from US $18.46 |
||
|
7
|
7
52423-KS7-701 Nut, adjuster |
52423-KS7-701 |
from US $14.08 |
||
|
8
|
8
52425-KZ3-B91
Case, shock absorber
|
52425-KZ3-B91 |
— | ||
|
9
|
9
52425-169-003 Cap, air valve |
52425-169-003 |
from US $2.59 |
||
|
10
|
10
52426-KZ3-B01 Rod |
52426-KZ3-B01 |
US $363.44 |
||
|
11
|
11
52427-KZ3-891 Rubber, stopper |
52427-KZ3-891 |
from US $13.17 |
||
|
12
|
12
52428-KZ3-B01
Plate, end
|
52428-KZ3-B01 |
— | ||
|
13
|
13
52429-KZ3-B01
Case, rod guide
|
52429-KZ3-B01 |
— | ||
|
14
|
14
52431-KZ3-B01
Ring, piston
|
52431-KZ3-B01 |
— | ||
|
15
|
15
52432-KZ3-861 O-ring (39.5x2.0) |
52432-KZ3-861 |
from US $2.96 |
||
|
16
|
16
52434-KZ3-861 O-ring (39.7x3.5) |
52434-KZ3-861 |
from US $3.92 |
||
|
17
|
17
52435-KZ3-861 Ring, stopper |
52435-KZ3-861 |
US $2.59 |
||
|
18
|
18
52436-KZ3-305 Oil seal set |
52436-KZ3-305 |
from US $26.79 |
||
|
19
|
19
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
|
20
|
20
52440-KZ3-B11
Adjuster
|
52440-KZ3-B11 |
— | ||
|
21
|
21
52451-KZ3-891 Bladder |
52451-KZ3-891 |
from US $17.95 |
||
|
22
|
22
52452-KS7-831 Ring, stopper |
52452-KS7-831 |
from US $2.59 |
||
|
23
|
23
52453-KS7-831 Cap, chamber |
52453-KS7-831 |
from US $31.68 |
||
|
24
|
24
52455-MM5-003 Ring, stopper |
52455-MM5-003 |
from US $7.55 |
||
|
25
|
25
52463-KZ3-B00 Collar c, shock arm |
52463-KZ3-B00 |
US $38.98 |
||
|
26
|
26
52463-KZ4-B00 Collar d, shock |
52463-KZ4-B00 |
from US $3.92 |
||
|
27
|
27
52464-KZ3-B00
Collar b, shock arm
|
52464-KZ3-B00 |
— | ||
|
28
|
28
52464-KZ4-B00 Collar d, shock side |
52464-KZ4-B00 |
from US $2.81 |
||
|
29
|
29
52465-KZ3-B00
Arm set, shock
|
52465-KZ3-B00 |
— | ||
|
30
|
30
52471-KZ3-B00 Rod |
52471-KZ3-B00 |
US $70.94 |
||
|
31
|
31
52475-KZ3-860 Collar |
52475-KZ3-860 |
from US $7.99 |
||
|
32
|
32
52476-KZ3-860 Washer, thrust |
52476-KZ3-860 |
from US $9.92 |
||
|
33
|
33
52486-KZ3-003 Seat, spring |
52486-KZ3-003 |
US $19.87 |
||
|
34
|
34
52487-KA4-831 Ring, stopper |
52487-KA4-831 |
from US $2.74 |
||
|
35
|
35
87516-KZ1-600 Label, rr. |
87516-KZ1-600 |
from US $4.29 |
||
|
36
|
36
90130-KZ3-B00
Bolt, link (15x96)
|
90130-KZ3-B00 |
— | ||
|
37
|
37
90153-KZ4-710 Bolt (10x43.5) |
90153-KZ4-710 |
from US $4.07 |
||
|
38
|
38
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
39
|
39
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
40
|
40
90306-KBP-901 Nut, hex. u (12mm) |
90306-KBP-901 |
from US $6.67 |
||
| replacement | |||||
|
40
|
40
90306-GAB-711 Nut,hex,12mm |
90306-GAB-711 |
from US $6.67 |
||
|
41
|
41
90306-KZ4-711 Nut, u (10mm) |
90306-KZ4-711 |
from US $3.26 |
||
|
42
|
42
90504-SF4-000 Washer, plain (12mm) |
90504-SF4-000 |
US $9.42 |
||
|
43
|
43
91074-KZ4-B01 Bearing (19x26x15) |
91074-KZ4-B01 |
from US $24.07 |
||
|
44
|
44
91074-MAC-741 Bearing (10) |
91074-MAC-741 |
from US $18.36 |
||
|
45
|
45
91078-KZ3-731 Bearing (22x28x16) |
91078-KZ3-731 |
from US $11.99 |
||
|
46
|
46
91256-KZ3-731 O-ring (21.5x1.5) |
91256-KZ3-731 |
from US $1.92 |
||
|
47
|
47
91257-KZ3-891 O-ring (26.2x1.9) |
91257-KZ3-891 |
from US $2.22 |
||
|
48
|
48
91261-KZ3-861 Dust seal (27x34x4) |
91261-KZ3-861 |
from US $4.28 |
||
|
49
|
49
91351-KZ3-731 Dust seal, shock |
91351-KZ3-731 |
from US $3.48 |
||
|
50
|
50
91351-KZ4-B01 Dust seal (17x26x3) |
91351-KZ4-B01 |
from US $3.77 |
||
|
51
|
51
91351-MAC-671 Dust seal (16x26x3) |
91351-MAC-671 |
from US $3.70 |
||
