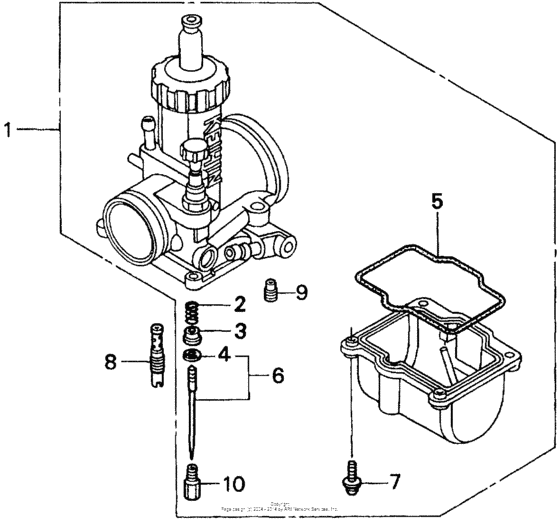

Carburetor optional kit 97-98 Diagram Honda CR250
- Year
- 1998
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*WM000001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16020-KZ3-B11
Parts kit
(Optional). |
16020-KZ3-B11 |
— | ||
|
2
|
2
16051-KA3-761 Spring(Optional). |
16051-KA3-761 |
US $19.21 |
||
|
3
|
3
16066-KA3-761 Colr, spring setting(Optional). |
16066-KA3-761 |
from US $3.09 |
||
|
4
|
4
16115-GHB-610 Clip, bar(Optional). |
16115-GHB-610 |
from US $1.92 |
||
|
5
|
5
16163-KZ3-B10
Gasket
(Optional). |
16163-KZ3-B10 |
— | ||
|
6
|
6
16012-KZ3-690
Ndl, jet (r1368ms)
(Optional). |
16012-KZ3-690 |
— | ||
|
6
|
6
16201-KZ3-690
Ndl, jet (r1366ms)
(Optional). |
16201-KZ3-690 |
— | ||
|
6
|
6
16202-KZ3-690
Ndl, jet (r1367ms)
(Optional). |
16202-KZ3-690 |
— | ||
|
6
|
6
16204-KZ3-B10 Ndl, jet (r1372ms)(Optional). |
16204-KZ3-B10 |
US $19.03 |
||
|
6
|
6
16204-KZ3-690
Ndl, jet (r1370ms)
(Optional). |
16204-KZ3-690 |
— | ||
|
6
|
6
16205-KZ3-880
Ndl, jet (r1371ms)
(Optional). |
16205-KZ3-880 |
— | ||
|
7
|
7
93892-040-160-8 Screw-washer4X16 (Optional). |
93892-040-160-8 |
from US $0.44 |
||
|
8
|
8
99103-KA30580
Jet, slow (#58)
(Optional). |
99103-KA30580 |
— | ||
|
8
|
8
99103-KA30600
Jet, slow (#60)
(Optional). |
99103-KA30600 |
— | ||
|
8
|
8
99103-4400500 Jet, slow (#50)(Optional). |
99103-4400500 |
from US $6.51 |
||
|
8
|
8
99103-4400520 Jet, slow (#52)(Optional). |
99103-4400520 |
from US $6.51 |
||
|
9
|
9
99105-KZ30380 Jet, power (#38)(Optional). |
99105-KZ30380 |
US $8.42 |
||
|
9
|
9
99105-KZ30480
Jet, power (#48)
(Optional). |
99105-KZ30480 |
— | ||
|
10
|
10
99113-GHB1650 Jet, main (#165)(Optional). |
99113-GHB1650 |
from US $6.66 |
||
|
10
|
10
99113-GHB1680 Jet, main (#168)(Optional). |
99113-GHB1680 |
from US $6.66 |
||
|
10
|
10
99113-GHB1700 Jet, main (#170)(Optional). |
99113-GHB1700 |
from US $6.66 |
||
|
10
|
10
99113-GHB1720 Jet, main (#172)(Optional). |
99113-GHB1720 |
from US $6.66 |
||
| replacement | |||||
|
10
|
10
99101-3571720 Jet, main (#172)(Optional). |
99101-3571720 |
from US $7 |
||
|
10
|
10
99113-GHB1780 Jet, main (#178)(Optional). |
99113-GHB1780 |
from US $6.66 |
||
|
10
|
10
99113-GHB1800 Jet, main (#180)(Optional). |
99113-GHB1800 |
from US $6.66 |
||
|
10
|
10
99113-GHB1820 Jet, main (#182)(Optional). |
99113-GHB1820 |
from US $6.66 |
||
|
10
|
10
99113-GHB1850 Jet, main (#185)(Optional). |
99113-GHB1850 |
from US $6.66 |
||
