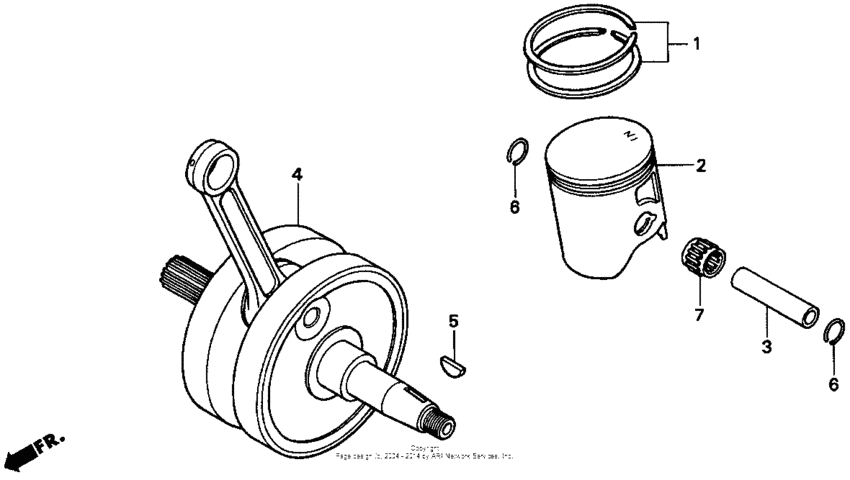

Crankshaft Diagram Honda CR250
- Year
- 1998
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*WM000001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-KZ3-306 Ring set (std) |
13011-KZ3-306 |
from US $54.84 |
||
|
2
|
2
13101-KZ3-505
Piston a
|
13101-KZ3-505 |
— | ||
|
2
|
2
13102-KZ3-B10 Piston b |
13102-KZ3-B10 |
from US $115.53 |
||
|
2
|
2
13102-KZ3-J20 Piston b |
13102-KZ3-J20 |
from US $92.82 |
||
| replacement | |||||
|
2
|
2
13101-KZ3-505
Piston a
|
13101-KZ3-505 |
— | ||
|
3
|
3
13111-KSK-730 Pin, piston |
13111-KSK-730 |
from US $22.58 |
||
|
4
|
4
13300-KZ3-B10 Crankshaft |
13300-KZ3-B10 |
from US $601.38 |
||
|
5
|
5
13331-360-000 Key (25x14) |
13331-360-000 |
from US $4.44 |
||
|
6
|
6
90601-430-000 Clip (1.2x18) |
90601-430-000 |
from US $2.81 |
||
|
7
|
7
91015-KZ3-003 Bearing |
91015-KZ3-003 |
from US $13.05 |
||
