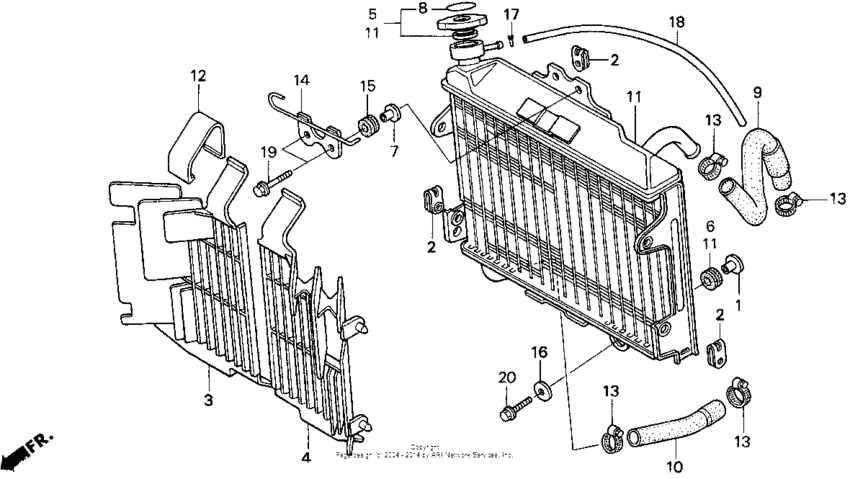

Radiator Diagram Honda CR250
- Year
- 1998
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*WM000001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18336-KS6-700 Collar, muff mt |
18336-KS6-700 |
from US $6.07 |
||
|
2
|
2
18354-KS6-000 Nut, muffler spring |
18354-KS6-000 |
from US $4.29 |
||
|
3
|
3
19033-KZ3-B00
Grille, r. radiator
|
19033-KZ3-B00 |
— | ||
|
4
|
4
19034-KZ3-B00
Grille, l. radiator
|
19034-KZ3-B00 |
— | ||
|
5
|
5
19045-MZ1-621 Cap, radiator |
19045-MZ1-621 |
from US $20.25 |
||
|
6
|
6
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
7
|
7
19052-MAC-680 Collar |
19052-MAC-680 |
from US $3.63 |
||
|
8
|
8
19055-MV9-881 Seal, radiator cap |
19055-MV9-881 |
from US $4.74 |
||
|
9
|
9
19062-KZ3-J00
Hose a, water
|
19062-KZ3-J00 |
— | ||
|
10
|
10
19067-KZ3-B00
Hose b, water
|
19067-KZ3-B00 |
— | ||
|
11
|
11
19100-KZ3-J10
Radiator assy.
|
19100-KZ3-J10 |
— | ||
|
12
|
12
19105-KZ3-B00
Guard, radiator
|
19105-KZ3-B00 |
— | ||
|
13
|
13
19506-KS6-700 Clamp b, water hose |
19506-KS6-700 |
from US $7.70 |
||
|
14
|
14
50608-KZ3-J00
Guide, cable
|
50608-KZ3-J00 |
— | ||
|
15
|
15
61103-430-000 Rubber, fr |
61103-430-000 |
from US $4.59 |
||
|
16
|
16
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
17
|
17
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
18
|
18
95003-140-0110M Bulk hose (6x9x1000) |
95003-140-0110M |
from US $1.95 |
||
|
19
|
19
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
20
|
20
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
