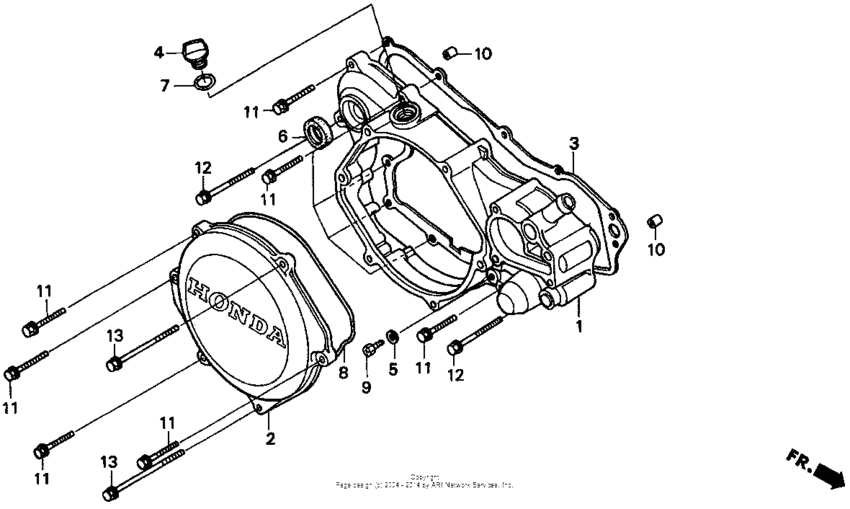

Right crankcase cover Diagram Honda CR250
- Year
- 1998
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME030*WM000001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KZ3-J10
Cover, r. crankcase
|
11341-KZ3-J10 |
— | ||
|
2
|
2
11342-KZ3-B10
Cover, Clutch
|
11342-KZ3-B10 |
— | ||
|
3
|
3
11395-KZ3-880 Gasket, r |
11395-KZ3-880 |
from US $22.44 |
||
|
4
|
4
15611-KA4-710 Cap, oil filler |
15611-KA4-710 |
from US $7.22 |
||
|
5
|
5
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $1.35 |
||
|
6
|
6
91204-KF0-003 Oil seal (20x28x5) |
91204-KF0-003 |
from US $5.33 |
||
|
7
|
7
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
8
|
8
91311-KS7-701 O-ring, special |
91311-KS7-701 |
from US $10.06 |
||
|
9
|
9
92301-06010-0A Bolt (6x10) |
92301-06010-0A |
from US $0.52 |
||
|
10
|
10
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
11
|
11
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
12
|
12
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
13
|
13
96001-0607000 Bolt, flange (6x70) |
96001-0607000 |
from US $0.89 |
