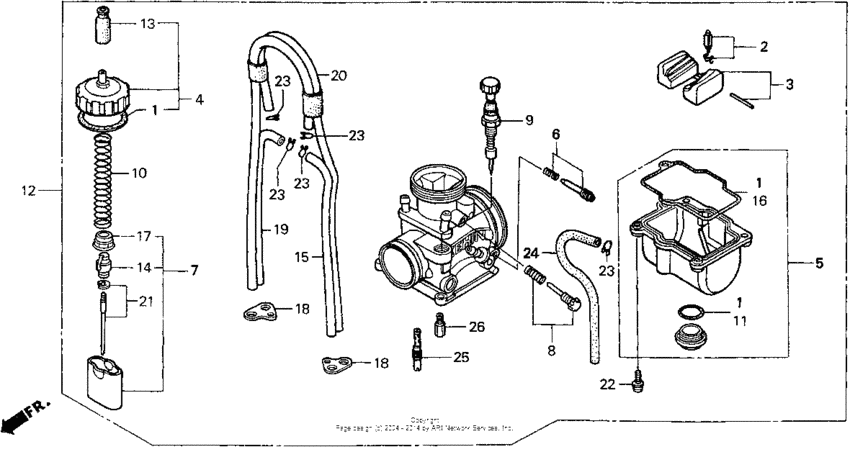

Carburetor 99 Diagram Honda CR250
- Year
- 1999
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*XM100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KA5-691 Gasket set |
16010-KA5-691 |
from US $29.42 |
||
|
2
|
2
16011-KZ3-J11 Valve set, float |
16011-KZ3-J11 |
US $45.15 |
||
|
3
|
3
16013-HA2-671 Float set |
16013-HA2-671 |
from US $37.04 |
||
|
4
|
4
16014-KZ3-J11
Top set
|
16014-KZ3-J11 |
— | ||
|
5
|
5
16015-VM0-004
Chamber set, float
|
16015-VM0-004 |
— | ||
|
6
|
6
16016-HA2-004 Screw set |
16016-HA2-004 |
from US $19.58 |
||
|
7
|
7
16022-KZ3-J11
Valve set, throttle
|
16022-KZ3-J11 |
— | ||
|
8
|
8
16028-KZ3-J11 Screw set b |
16028-KZ3-J11 |
from US $17.34 |
||
|
9
|
9
16046-KZ3-J11
Valve set, starter
|
16046-KZ3-J11 |
— | ||
|
10
|
10
16050-KZ3-J11
Spring
|
16050-KZ3-J11 |
— | ||
|
11
|
11
16075-GHB-B00 O-ring (2.4x18.6) |
16075-GHB-B00 |
from US $5.15 |
||
|
12
|
12
16100-KZ3-J11
Carburetor assy.
|
16100-KZ3-J11 |
— | ||
|
13
|
13
16148-KB1-921 Cap, cable sealing |
16148-KB1-921 |
from US $6.96 |
||
|
14
|
14
16137-KZ3-J11
Holder, cable
|
16137-KZ3-J11 |
— | ||
|
15
|
15
16198-KZ3-P00 Tube,4x7x390 |
16198-KZ3-P00 |
from US $2.50 |
||
|
16
|
16
16163-KZ4-J01 Gasket |
16163-KZ4-J01 |
US $27.20 |
||
|
17
|
17
16172-KZ3-J11
Collar, set
|
16172-KZ3-J11 |
— | ||
|
18
|
18
16179-KZ4-690 Binder |
16179-KZ4-690 |
from US $8.01 |
||
|
19
|
19
16198-KZ3-P00 Tube,4x7x390 |
16198-KZ3-P00 |
from US $2.50 |
||
|
20
|
20
16199-KZ3-J11
Tube, air vent
|
16199-KZ3-J11 |
— | ||
|
21
|
21
16203-KZ3-J11
Ndl, jet (r1370dka)
|
16203-KZ3-J11 |
— | ||
|
22
|
22
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
23
|
23
9500202079 Clip, tube (b7) |
9500202079 |
from US $0.47 |
||
|
24
|
24
95003-050-0860M Bulk hose, vinyl |
95003-050-0860M |
from US $10.95 |
||
|
25
|
25
99103-440-0420 Jet, slow (#42) |
99103-440-0420 |
from US $7.16 |
||
|
26
|
26
99113-GHB1900 Jet, main (#190) |
99113-GHB1900 |
from US $6.66 |
