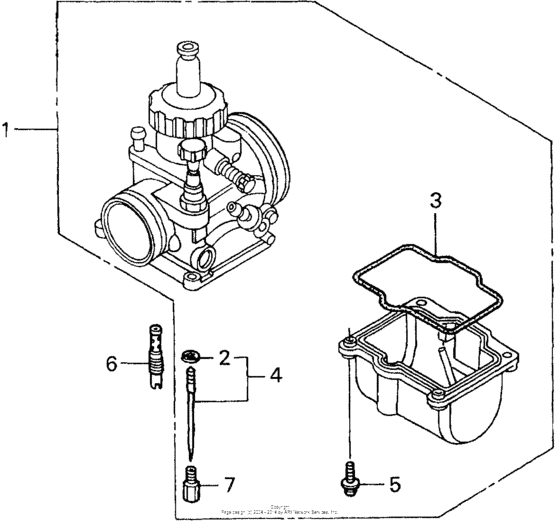

Carburetor optional kit 99 Diagram Honda CR250
- Year
- 1999
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*XM100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16020-KZ3-J11 Parts kit(Optional). |
16020-KZ3-J11 |
US $144.98 |
||
|
2
|
2
16115-GHB-610 Clip, bar(Optional). |
16115-GHB-610 |
from US $1.92 |
||
|
3
|
3
16163-KZ4-J01 Gasket(Optional). |
16163-KZ4-J01 |
US $27.20 |
||
|
4
|
4
16201-KZ3-J11 Ndl, jet (r1368dka)(Optional). |
16201-KZ3-J11 |
US $20.50 |
||
|
4
|
4
16202-KZ3-J11 Ndl, jet (r1369dka)(Optional). |
16202-KZ3-J11 |
US $20.98 |
||
|
4
|
4
16203-KZ3-J11
Ndl, jet (r1370dka)
(Optional). |
16203-KZ3-J11 |
— | ||
|
4
|
4
16204-KZ3-J11
Ndl, jet (r1371dka)
(Optional). |
16204-KZ3-J11 |
— | ||
|
4
|
4
16205-KZ3-J11
Ndl, jet (r1372dka)
(Optional). |
16205-KZ3-J11 |
— | ||
|
4
|
4
16230-KZ3-J11
Ndl, jet (r1368eka)
(Optional). |
16230-KZ3-J11 |
— | ||
|
4
|
4
16231-KZ3-J11
Ndl, jet (r1369eka)
(Optional). |
16231-KZ3-J11 |
— | ||
|
4
|
4
16232-KZ3-J11
Ndl, jet (r1370eka)
(Optional). |
16232-KZ3-J11 |
— | ||
|
4
|
4
16233-KZ3-J11
Ndl, jet (r1371eka)
(Optional). |
16233-KZ3-J11 |
— | ||
|
4
|
4
16234-KZ3-J11
Ndl, jet (r1372eka)
(Optional). |
16234-KZ3-J11 |
— | ||
|
5
|
5
93892-040-160-8 Screw-washer4X16 (Optional). |
93892-040-160-8 |
from US $0.44 |
||
|
6
|
6
99103-GBF-0450 Jet, slow (#45)(Optional). |
99103-GBF-0450 |
from US $6.36 |
||
|
6
|
6
99103-KA3-0380 Jet, slow (#38)(Optional). |
99103-KA3-0380 |
from US $5.33 |
||
| replacement | |||||
|
6
|
6
99103-KBA0380 Jet #38(Optional). |
99103-KBA0380 |
from US $6.66 |
||
|
6
|
6
99103-GBF-0400 Jet, slow (#40)(Optional). |
99103-GBF-0400 |
from US $6.36 |
||
|
6
|
6
99103-KBA0380 Jet #38(Optional). |
99103-KBA0380 |
from US $6.66 |
||
|
6
|
6
99103-GBF-0480 Jet, slow (#48)(Optional). |
99103-GBF-0480 |
from US $6.36 |
||
|
7
|
7
99113-GHB1800 Jet, main (#180)(Optional). |
99113-GHB1800 |
from US $6.66 |
||
|
7
|
7
99113-GHB1820 Jet, main (#182)(Optional). |
99113-GHB1820 |
from US $6.66 |
||
|
7
|
7
99113-GHB1850 Jet, main (#185)(Optional). |
99113-GHB1850 |
from US $6.66 |
||
|
7
|
7
99113-GHB1880 Jet, main (#188)(Optional). |
99113-GHB1880 |
from US $6.66 |
||
|
7
|
7
99113-GHB1920 Jet, main (#192)(Optional). |
99113-GHB1920 |
from US $6.66 |
||
|
7
|
7
99113-GHB1950 Jet, main (#195)(Optional). |
99113-GHB1950 |
US $6.66 |
||
|
7
|
7
99113-GHB1980 Jet, main (#198)(Optional). |
99113-GHB1980 |
from US $6.66 |
||
|
7
|
7
99113-GHB2000 Jet, main (#200)(Optional). |
99113-GHB2000 |
US $6.66 |
||
