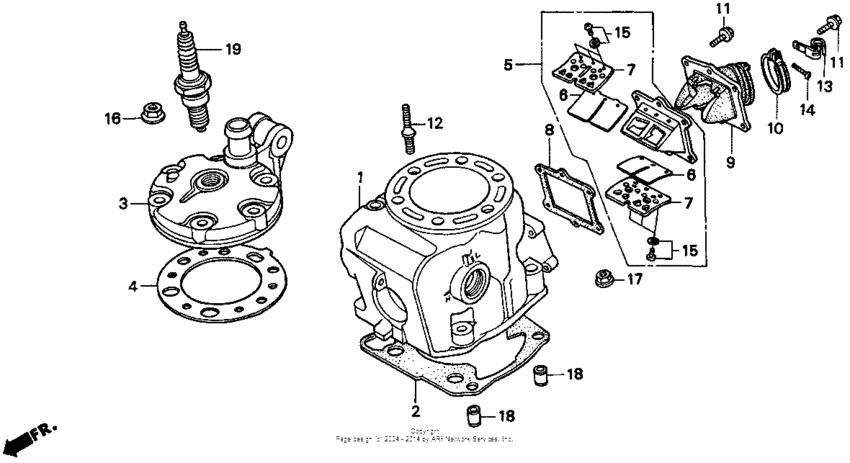

Cylinder head Diagram Honda CR250
- Year
- 1999
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*XM100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12101-KZ3-J10
Cylinder a
|
12101-KZ3-J10 |
— | ||
|
2
|
2
12191-KZ3-880 Gasket, cylinder |
12191-KZ3-880 |
from US $10.26 |
||
|
3
|
3
12201-KZ3-J10 Cylinder head |
12201-KZ3-J10 |
from US $149.26 |
||
|
4
|
4
12254-KZ3-860 Gasket, cyl hd |
12254-KZ3-860 |
from US $13.72 |
||
|
5
|
5
14100-KZ3-J21 Reed valve assy |
14100-KZ3-J21 |
US $115.46 |
||
|
6
|
6
14111-KZ3-J12
Reed valve only
|
14111-KZ3-J12 |
— | ||
|
7
|
7
14121-KZ3-J11
Stopper, reed valve
|
14121-KZ3-J11 |
— | ||
|
8
|
8
14132-KZ3-880 Gasket, reed valve |
14132-KZ3-880 |
from US $10.06 |
||
|
9
|
9
16221-KZ3-J10
Insulator
|
16221-KZ3-J10 |
— | ||
|
10
|
10
16223-KA5-690 Band, insulator |
16223-KA5-690 |
US $16.80 |
||
|
11
|
11
90004-GHB-660 Bolt, flange (6x22) |
90004-GHB-660 |
from US $1.92 |
||
|
12
|
12
90011-KR8-750 Bolt (8x37) |
90011-KR8-750 |
from US $6.22 |
||
|
13
|
13
91406-657-671 ClipWIRE HARNESS |
91406-657-671 |
from US $3.70 |
||
|
14
|
14
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
15
|
15
93892-030-080-8 Screw-washer3X8 |
93892-030-080-8 |
from US $0.38 |
||
|
16
|
16
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
17
|
17
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
18
|
18
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
19
|
19
98079-58679 Spark plug (br8eg) |
98079-58679 |
US $9.32 |
||
|
19
|
19
98079-58659 Spark plug (w24esr-v) |
98079-58659 |
from US $3.71 |
