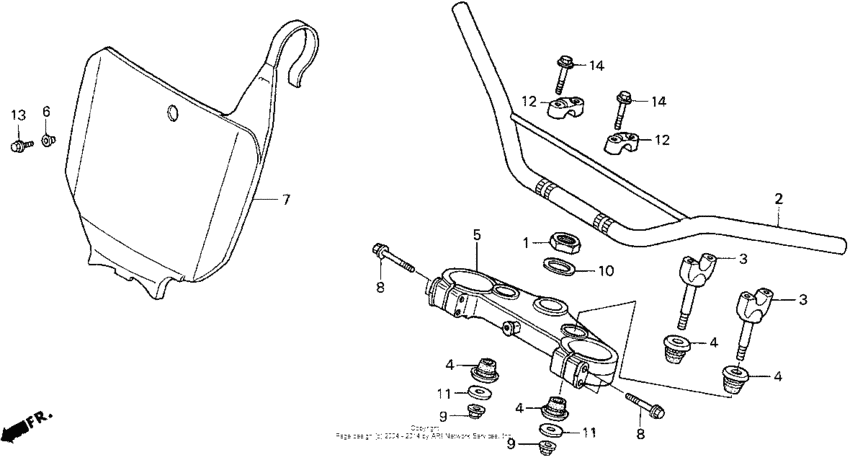

Handlebar 99 Diagram Honda CR250
- Year
- 1999
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*XM100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50306-GN5-830
Nut
|
50306-GN5-830 |
— | ||
|
2
|
2
53100-KZ3-J10ZA
Handlebar *nh262m*
|
53100-KZ3-J10ZA |
— | ||
|
3
|
3
53132-KA3-831 Holder, handle |
53132-KA3-831 |
from US $22.28 |
||
|
4
|
4
53133-KA3-832 Cushion, handlebar |
53133-KA3-832 |
from US $3.27 |
||
|
5
|
5
53230-KZ3-J10
Bridge, fork top
|
53230-KZ3-J10 |
— | ||
|
6
|
6
61101-441-000 Collar, fr |
61101-441-000 |
from US $3.83 |
||
|
7
|
7
61136-MAC-740ZA
Plate, fr. *nh196*
|
61136-MAC-740ZA |
— | ||
|
8
|
8
90103-KF0-000 Bolt, flange (8x45) |
90103-KF0-000 |
from US $3.55 |
||
|
9
|
9
90306-KZ4-711 Nut, u (10mm) |
90306-KZ4-711 |
from US $3.26 |
||
|
10
|
10
90503-KZ3-860
Washer (26.5mm)
|
90503-KZ3-860 |
— | ||
|
11
|
11
90507-KA3-830 Washer, plain (10mm) |
90507-KA3-830 |
from US $1.80 |
||
|
12
|
12
95014-22100 Holder b1, handlebar |
95014-22100 |
from US $7.70 |
||
|
13
|
13
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
14
|
14
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.81 |
