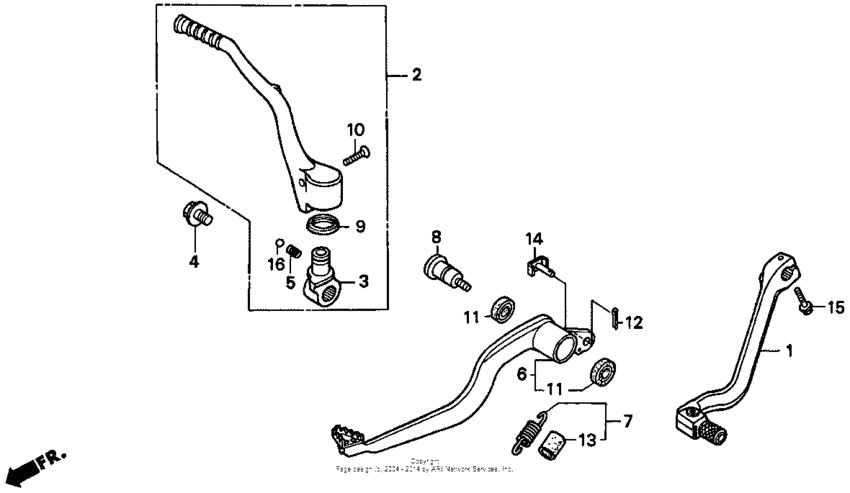

Pedal Diagram Honda CR250
- Year
- 1999
- Model code
- CR250R A
- Sales region
- USA
- Frame
- JH2ME033*XM100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KZ3-B00
Pedal, gearshift
|
24700-KZ3-B00 |
— | ||
|
2
|
2
28300-KZ3-B00 Arm, kick starter |
28300-KZ3-B00 |
US $142.51 |
||
|
3
|
3
28302-KZ3-B00
Joint, kick arm
|
28302-KZ3-B00 |
— | ||
|
4
|
4
28306-KAE-000 Bolt, kick joint |
28306-KAE-000 |
from US $4.77 |
||
|
5
|
5
28333-KK0-000 Spring, kick starter |
28333-KK0-000 |
from US $0.99 |
||
|
6
|
6
46510-KZ3-B00 Pedal, rr. brake |
46510-KZ3-B00 |
US $131.65 |
||
|
7
|
7
46511-KZ3-B00
Spring, brake pedal
|
46511-KZ3-B00 |
— | ||
|
8
|
8
46513-KZ3-600 Shaft, brake pivot |
46513-KZ3-600 |
from US $13.76 |
||
|
9
|
9
46525-KK0-003 Dust seal |
46525-KK0-003 |
from US $2.30 |
||
|
10
|
10
90101-MAC-680 Bolt, kick arm |
90101-MAC-680 |
from US $4.59 |
||
|
11
|
11
91251-444-000 Dust seal |
91251-444-000 |
from US $3.70 |
||
|
12
|
12
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
13
|
13
95003-3900220
Tube, vinyl (12x14x2) (na use
|
95003-3900220 |
— | ||
|
14
|
14
9501554000 Pin d, joint |
9501554000 |
from US $1.48 |
||
|
15
|
15
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
16
|
16
96211-08000 Ball |
96211-08000 |
from US $0.22 |
