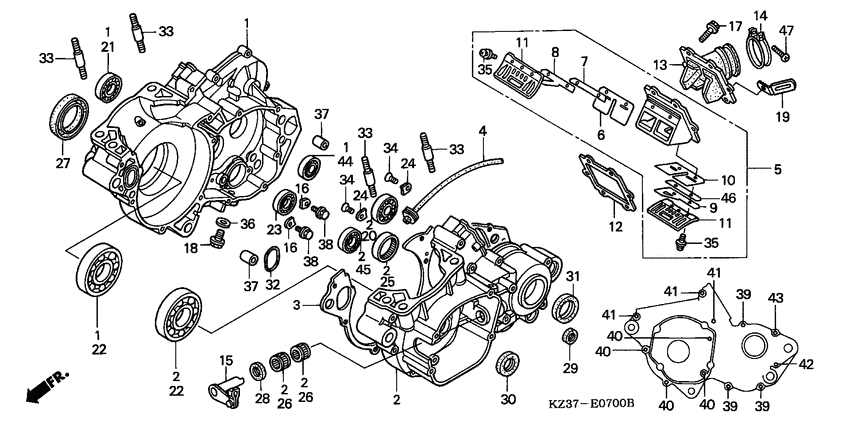

Crankcase (CR250R2) Diagram Honda CR250
- Year
- 2002
- Model code
- CR250R2
- Sales region
- Australia
- Frame
- JH2ME03U*2M300001 - JH2ME03U*2M399999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04921-KZ3-L20
Crankcase, r.
|
04921-KZ3-L20 |
— | ||
|
2
|
2
04922-KZ3-L20
Crankcase, l.
|
04922-KZ3-L20 |
— | ||
| replacement | |||||
|
2
|
2
04922-KZ3-L21
Crankcase, l.
|
04922-KZ3-L21 |
— | ||
|
3
|
3
11191-KZ3-L20 Gasket, crankcase |
11191-KZ3-L20 |
from US $16.63 |
||
|
4
|
4
11211-ML3-910 Tube, breather |
11211-ML3-910 |
from US $8.44 |
||
|
5
|
5
14100-KZ3-L21 Valve assy., reed- 6405892 |
14100-KZ3-L21 |
US $149.33 |
||
| replacement | |||||
|
5
|
5
14100-KZ3-L22 Valve assy., reed- 6405892 |
14100-KZ3-L22 |
US $149.33 |
||
|
5
|
5
14100-KZ3-L22 Valve assy., reed6405893 - |
14100-KZ3-L22 |
US $149.33 |
||
|
6
|
6
14111-KZ3-L21 Reed valve only |
14111-KZ3-L21 |
US $13.70 |
||
|
7
|
7
14112-KZ3-L21
Spacer, reed valve
|
14112-KZ3-L21 |
— | ||
| replacement | |||||
|
7
|
7
14112-KZ3-L22
Spacer, reed valve
|
14112-KZ3-L22 |
— | ||
|
8
|
8
14113-KZ3-L21
Reed valve only, sub
|
14113-KZ3-L21 |
— | ||
|
9
|
9
14114-KZ3-L21
Reed valve only, sub
- 6405892 |
14114-KZ3-L21 |
— | ||
| replacement | |||||
|
9
|
9
14114-KZ3-L22
Reed valve only, sub
- 6405892 |
14114-KZ3-L22 |
— | ||
|
9
|
9
14114-KZ3-L22
Reed valve only, sub
6405893 - |
14114-KZ3-L22 |
— | ||
|
10
|
10
14115-KZ3-L21
Reed valve only
|
14115-KZ3-L21 |
— | ||
|
11
|
11
14121-KZ3-L21 Stopper, reed valve |
14121-KZ3-L21 |
US $20.60 |
||
|
12
|
12
14132-KZ3-L20 Gasket, reed valve |
14132-KZ3-L20 |
from US $10.76 |
||
|
13
|
13
16221-KZ3-L20
Insulator
|
16221-KZ3-L20 |
— | ||
|
14
|
14
16223-KA5-690 Band, insulator |
16223-KA5-690 |
US $16.80 |
||
|
15
|
15
22810-KS7-000 Lifter, clutch |
22810-KS7-000 |
from US $54.63 |
||
|
16
|
16
23521-KW3-000 Plate a |
23521-KW3-000 |
from US $3.55 |
||
|
17
|
17
90004-GHB-660 Bolt, flange (6x22) |
90004-GHB-660 |
from US $1.92 |
||
|
18
|
18
90015-KA3-711 Bolt, special (12mm) |
90015-KA3-711 |
from US $5.92 |
||
|
19
|
19
90601-KJ9-000 Clip (4x50) |
90601-KJ9-000 |
from US $2.66 |
||
|
20
|
20
91001-ML3-873 Bearing (24x56x14) |
91001-ML3-873 |
from US $14.96 |
||
|
21
|
21
91002-KZ3-L21 Bearing (25x52x13.5) |
91002-KZ3-L21 |
from US $17.82 |
||
|
22
|
22
91003-KA4-771 Bearing (63/28-cs30) |
91003-KA4-771 |
US $40.22 |
||
| replacement | |||||
|
22
|
22
91008-KAE-731 Bearing, radial ball |
91008-KAE-731 |
from US $17.24 |
||
|
23
|
23
91004-KZ3-L11 Bearing (6905u) |
91004-KZ3-L11 |
from US $19.09 |
||
|
24
|
24
91012-KA3-710 Plate |
91012-KA3-710 |
from US $2.72 |
||
|
25
|
25
91022-KA4-740 Bearing (33x38x8) |
91022-KA4-740 |
from US $13.91 |
||
|
26
|
26
91053-719-005 Bearing, needle, 12x16x10 (ntn) |
91053-719-005 |
from US $9.96 |
||
| replacement | |||||
|
26
|
26
91101-PZ9-000 Bearing (12x16x10) |
91101-PZ9-000 |
from US $4.88 |
||
|
27
|
27
91201-KA4-004 Oil seal (38x58x11) |
91201-KA4-004 |
from US $14.01 |
||
|
28
|
28
91201-951-003 Oil seal, 12x18x3 (arai) |
91201-951-003 |
from US $2.52 |
||
|
29
|
29
91203-KA4-771 Oil seal (14x22x5) |
91203-KA4-771 |
from US $5.18 |
||
|
29
|
29
91203-KA4-772 Oil seal (14x22x5) |
91203-KA4-772 |
from US $3.64 |
||
| replacement | |||||
|
29
|
29
91203-KK3-830 Oil seal, 14x22x5 |
91203-KK3-830 |
from US $1.60 |
||
|
30
|
30
91205-KZ3-861 Oil seal (20x37x7) |
91205-KZ3-861 |
from US $15.23 |
||
|
31
|
31
91207-ML3-871 Oil seal (31x40x7) |
91207-ML3-871 |
from US $5.08 |
||
|
32
|
32
91301-KZ3-L20
O-ring (37.2x27)
|
91301-KZ3-L20 |
— | ||
|
33
|
33
92900-10040-0B BoltSTUD, 10X40 |
92900-10040-0B |
from US $1.04 |
||
|
34
|
34
93600-060-120-A ScrewFLAT, 6X12 |
93600-060-120-A |
from US $0.47 |
||
|
35
|
35
93892-030-080-8 Screw-washer3X8 |
93892-030-080-8 |
from US $0.38 |
||
|
36
|
36
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
37
|
37
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
38
|
38
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
39
|
39
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
40
|
40
96001-0605000 Bolt, flange (6x50) |
96001-0605000 |
from US $0.81 |
||
|
41
|
41
96001-060-600-0 BoltFLANGE, 6X60 |
96001-060-600-0 |
from US $0.81 |
||
|
42
|
42
96001-0607500 Bolt, flange (6x75) |
96001-0607500 |
from US $0.72 |
||
|
43
|
43
96001-0608000 Bolt, flange (6x80) |
96001-0608000 |
from US $0.89 |
||
|
44
|
44
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
||
|
45
|
45
96140-6203000 Bearing, radial ball, 6203u |
96140-6203000 |
from US $7.62 |
||
|
46
|
46
14112-KZ3-L21
Spacer, reed valve
- 6405892 |
14112-KZ3-L21 |
— | ||
| replacement | |||||
|
46
|
46
14112-KZ3-L22
Spacer, reed valve
- 6405892 |
14112-KZ3-L22 |
— | ||
|
46
|
46
14116-KZ3-L21
Spacer, reed valve
6405893 - |
14116-KZ3-L21 |
— | ||
|
47
|
47
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
