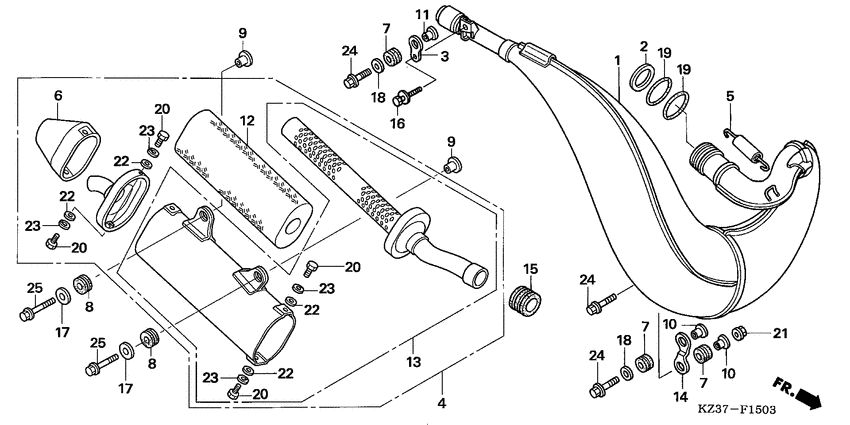

Expansion chamber (CR250R6,7) Diagram Honda CR250
- Year
- 2006
- Model code
- CR250R6
- Sales region
- Europe
- Frame
- JH2ME03A*6M000001 - JH2ME03A*6M099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18300-KSK-711
Muffler, ex.
|
18300-KSK-711 |
— | ||
|
2
|
2
18309-KZ3-600 Washer (42x47.5) |
18309-KZ3-600 |
from US $7.10 |
||
|
3
|
3
18325-KS6-000 Stay, rr. chamber |
18325-KS6-000 |
from US $15 |
||
|
4
|
4
18330-KSK-680
Silencer comp
|
18330-KSK-680 |
— | ||
|
5
|
5
18332-KSK-711 Spring, ex. pipe |
18332-KSK-711 |
US $9.13 |
||
|
6
|
6
18332-KZ3-J20
Cap,silencer rr
|
18332-KZ3-J20 |
— | ||
|
7
|
7
18334-KA3-830 Rubber, muffler |
18334-KA3-830 |
from US $2.07 |
||
|
8
|
8
18334-KSK-680 RubberSILENCER |
18334-KSK-680 |
US $3.93 |
||
|
9
|
9
18336-KSK-680 CollarSILENCER - 6M000105 |
18336-KSK-680 |
US $8.47 |
||
|
9
|
9
18336-KSK-681 CollarSILENCER 6M000106 - |
18336-KSK-681 |
US $8.62 |
||
|
10
|
10
18336-KS6-700 Collar, muff mt |
18336-KS6-700 |
from US $6.07 |
||
|
11
|
11
18336-KZ3-J30 Collar |
18336-KZ3-J30 |
from US $5.92 |
||
|
12
|
12
18340-KSK-680 Grass wool |
18340-KSK-680 |
from US $42.16 |
||
|
13
|
13
18350-KSK-680
Body comp
|
18350-KSK-680 |
— | ||
|
14
|
14
18355-KZ3-J40 Stay, chamber |
18355-KZ3-J40 |
from US $10.76 |
||
|
15
|
15
18365-KA4-730 Rubber |
18365-KA4-730 |
from US $10.91 |
||
|
16
|
16
90102-KS6-000 Bolt-washer (6x16) |
90102-KS6-000 |
from US $5.77 |
||
|
17
|
17
90501-KSK-681
Washer
|
90501-KSK-681 |
— | ||
|
18
|
18
90506-430-000 Washer |
90506-430-000 |
from US $3.03 |
||
|
19
|
19
91304-KZ3-890 O-ring (43x3) |
91304-KZ3-890 |
from US $12.73 |
||
|
20
|
20
92301-05012-0A BoltRECESSED, 5X12 |
92301-05012-0A |
from US $0.44 |
||
|
21
|
21
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
22
|
22
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
23
|
23
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
24
|
24
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
25
|
25
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
