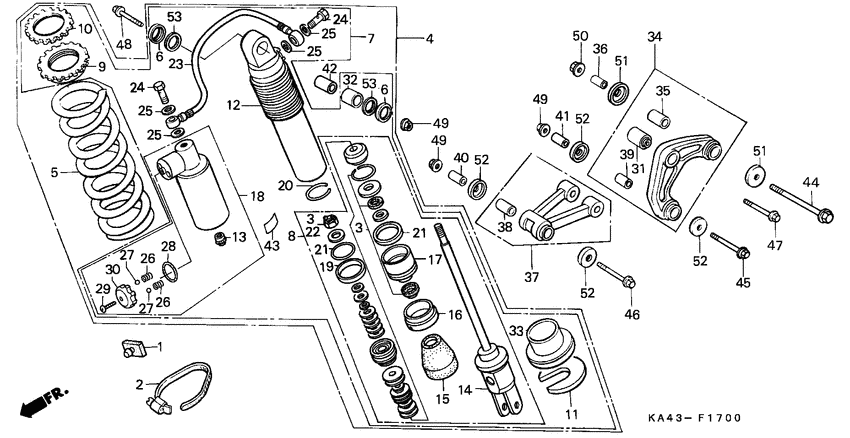

Rear cushion (1) Diagram Honda CR250
- Year
- 1984
- Model code
- CR250RE
- Sales region
- Canada
- Frame
- JH2MC030*EC600122 - JH2MC030*EC606941
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50250-KA3-730
Rubber
|
50250-KA3-730 |
— | ||
|
2
|
2
50252-KA4-730
Band, sub-tank
|
50252-KA4-730 |
— | ||
|
3
|
3
524A3-KA4-741 Oil seal & nut set |
524A3-KA4-741 |
US $9.55 |
||
|
4
|
4
52400-KA4-741
Shock absorber, rr.
|
52400-KA4-741 |
— | ||
|
5
|
5
52401-KA4-741
Spring, rr. shock
|
52401-KA4-741 |
— | ||
|
5
|
5
52402-KA4-741
Spring (4.2 yellow)
|
52402-KA4-741 |
— | ||
|
5
|
5
52403-KA4-741
Spring (5.0 blue)
|
52403-KA4-741 |
— | ||
|
6
|
6
52406-KB7-003 Cap, dust seal |
52406-KB7-003 |
from US $4.40 |
||
|
7
|
7
52410-KA4-741
Damper, rr.
|
52410-KA4-741 |
— | ||
|
8
|
8
52421-KA4-741
Rod, piston
|
52421-KA4-741 |
— | ||
|
9
|
9
52422-MA0-003 Adjuster, spring |
52422-MA0-003 |
from US $15.78 |
||
|
10
|
10
52423-KA3-711
Nut, adjuster
|
52423-KA3-711 |
— | ||
|
11
|
11
52424-KA3-711
Stopper, spring seat
|
52424-KA3-711 |
— | ||
|
12
|
12
52425-KA4-731
Case, rr.
|
52425-KA4-731 |
— | ||
|
13
|
13
52425-381-771 Cap, air valve |
52425-381-771 |
from US $4.59 |
||
|
14
|
14
52426-KA4-741
Rod
|
52426-KA4-741 |
— | ||
|
15
|
15
52427-KA4-741 Rubber, stopper |
52427-KA4-741 |
from US $10.79 |
||
|
16
|
16
52428-KA4-741 Cap, case |
52428-KA4-741 |
from US $13.57 |
||
|
17
|
17
52429-KA4-741
Case, rod guide
|
52429-KA4-741 |
— | ||
|
18
|
18
52430-KA4-731
Sub-tank assy.
|
52430-KA4-731 |
— | ||
|
19
|
19
52431-MA0-771 Ring, piston |
52431-MA0-771 |
from US $12.88 |
||
|
20
|
20
52435-MA0-771 Ring, stopper |
52435-MA0-771 |
from US $3.26 |
||
|
21
|
21
52437-KA4-741
O-ring set
|
52437-KA4-741 |
— | ||
|
22
|
22
52438-KA4-741 Nut, hex. (12mm) |
52438-KA4-741 |
from US $2.41 |
||
|
23
|
23
52440-KA4-731
Hose, joint
|
52440-KA4-731 |
— | ||
|
24
|
24
52441-KA3-711
Bolt, oil (10x22)
|
52441-KA3-711 |
— | ||
|
25
|
25
52442-KA3-711 Washer (10mm) |
52442-KA3-711 |
from US $1.22 |
||
|
26
|
26
52445-KA4-731
Spring, click
|
52445-KA4-731 |
— | ||
|
27
|
27
52446-KF0-003
Ball
|
52446-KF0-003 |
— | ||
|
28
|
28
52447-KF0-003
O-ring (2x23.5)
|
52447-KF0-003 |
— | ||
|
29
|
29
52448-KF0-003 Screw |
52448-KF0-003 |
from US $1.22 |
||
|
30
|
30
52449-KA4-731
Plate, adjusting
|
52449-KA4-731 |
— | ||
|
31
|
31
52451-MA0-000 Bush, shock (lower) |
52451-MA0-000 |
from US $7.84 |
||
|
32
|
32
52452-KB7-003 Bush, shock (upper) |
52452-KB7-003 |
from US $13.35 |
||
|
33
|
33
52459-KA3-711
Seat c, spring
|
52459-KA3-711 |
— | ||
|
34
|
34
52460-KA3-730
Arm, shock absorber
|
52460-KA3-730 |
— | ||
|
35
|
35
52462-MA0-013
Bush, damper arm
|
52462-MA0-013 |
— | ||
|
36
|
36
52463-MA0-010
Collar
|
52463-MA0-010 |
— | ||
|
37
|
37
52470-KA3-730
Rod assy
|
52470-KA3-730 |
— | ||
|
38
|
38
52472-KA3-711 Bush |
52472-KA3-711 |
US $29.53 |
||
|
39
|
39
52472-MA0-013 Bush |
52472-MA0-013 |
from US $14.01 |
||
|
40
|
40
52473-KA3-710
Collar
|
52473-KA3-710 |
— | ||
|
41
|
41
52473-MA0-010 Collar |
52473-MA0-010 |
US $13.92 |
||
| replacement | |||||
|
41
|
41
52473-MA0-020 Collar |
52473-MA0-020 |
from US $7.84 |
||
|
42
|
42
52486-KB7-003 Colr, shock (upper) |
52486-KB7-003 |
from US $9.03 |
||
|
43
|
43
87516-KF0-003
Label, rr.
|
87516-KF0-003 |
— | ||
|
43
|
43
87516-KF0-621
Label,rr.damper
|
87516-KF0-621 |
— | ||
|
44
|
44
90128-KA3-730
Bolt, flg (12x105)
|
90128-KA3-730 |
— | ||
|
45
|
45
90129-KF0-000 Bolt, flange (10x77) |
90129-KF0-000 |
from US $9.03 |
||
|
46
|
46
90130-KA3-730 Bolt, flange (10x98) |
90130-KA3-730 |
from US $13.05 |
||
|
47
|
47
90153-KA3-730
Bolt, flange (10x48)
|
90153-KA3-730 |
— | ||
|
48
|
48
90182-KA3-730 Bolt, flange (10x57) |
90182-KA3-730 |
US $6.94 |
||
| replacement | |||||
|
48
|
48
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
49
|
49
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
50
|
50
90306-KA4-003 Nut, flange (12mm) |
90306-KA4-003 |
US $5.42 |
||
| replacement | |||||
|
50
|
50
90306-181-761 Nut, flange (12mm) |
90306-181-761 |
from US $3.70 |
||
|
51
|
51
91261-KA3-711 Seal |
91261-KA3-711 |
US $9.69 |
||
| replacement | |||||
|
51
|
51
91262-KR8-750 Seal,cushion arm |
91262-KR8-750 |
from US $7.80 |
||
|
51
|
51
91261-KA3-712 Seal |
91261-KA3-712 |
from US $7.80 |
||
| replacement | |||||
|
51
|
51
91262-KR8-750 Seal,cushion arm |
91262-KR8-750 |
from US $7.80 |
||
|
52
|
52
91262-KA3-711 Seal |
91262-KA3-711 |
US $9.69 |
||
| replacement | |||||
|
52
|
52
91262-KA3-712 Seal |
91262-KA3-712 |
from US $8.89 |
||
|
52
|
52
91262-KA3-712 Seal |
91262-KA3-712 |
from US $8.89 |
||
|
53
|
53
91351-KB7-003 Dust seal b |
91351-KB7-003 |
from US $2.59 |
||
