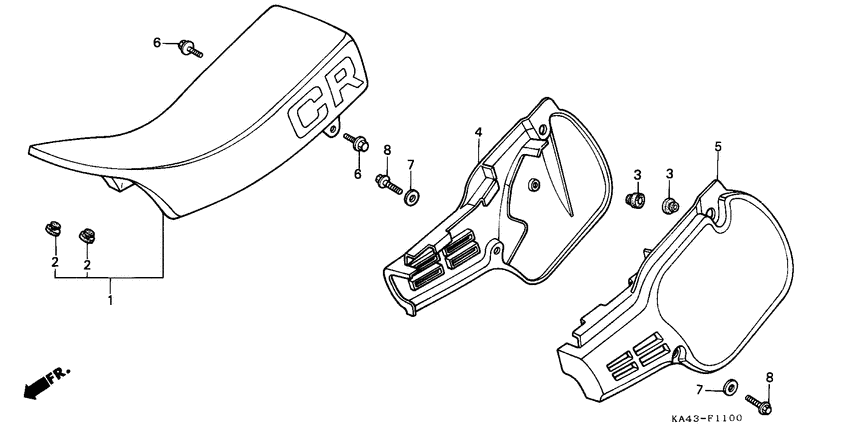

Seat/side cover (1) Diagram Honda CR250
- Year
- 1984
- Model code
- CR250RE
- Sales region
- Canada
- Frame
- JH2MC030*EC600122 - JH2MC030*EC606941
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77100-KA3-750
Seat
|
77100-KA3-750 |
— | ||
|
1
|
1
77100-KA3-810
Seat
|
77100-KA3-810 |
— | ||
|
2
|
2
77110-KA3-730 Rubber |
77110-KA3-730 |
from US $2.07 |
||
|
3
|
3
83512-KA4-700 Rubber, side cover |
83512-KA4-700 |
from US $4.88 |
||
|
4
|
4
83520-KA3-730ZA
Sid cov,r*type-1*
|
83520-KA3-730ZA |
— | ||
|
5
|
5
83620-KA3-730ZA
Sid cov l*type-1*
|
83620-KA3-730ZA |
— | ||
|
6
|
6
90133-KA3-730 Bolt, flange (8x12) |
90133-KA3-730 |
US $1.31 |
||
| replacement | |||||
|
6
|
6
96300-0802000 Bolt, flange (8x20) |
96300-0802000 |
from US $0.74 |
||
|
7
|
7
90506-KA3-710
Washer, side cover
|
90506-KA3-710 |
— | ||
|
8
|
8
96000-0601400 Bolt, flange (6x14) |
96000-0601400 |
from US $0.59 |
||
| replacement | |||||
|
8
|
8
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
