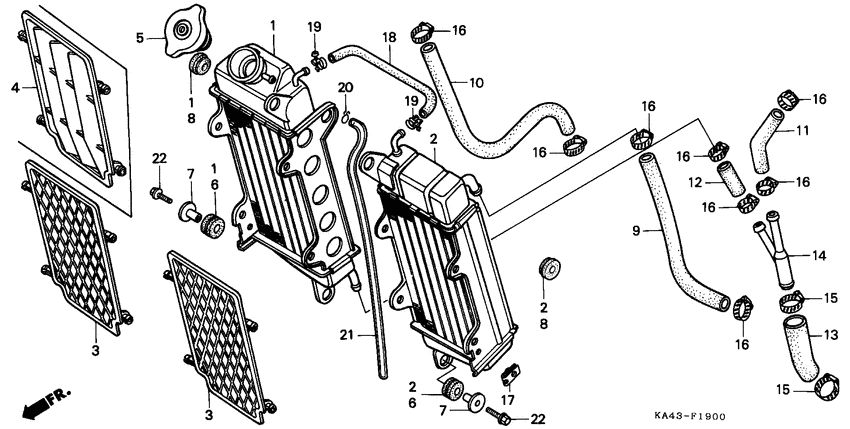

Radiator (1) Diagram Honda CR250
- Year
- 1984
- Model code
- CR250RE
- Sales region
- Australia
- Frame
- JH2MC030*EC600527 - JH2MC030*EC607621
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-KA3-731
Radiator,r
|
19010-KA3-731 |
— | ||
|
2
|
2
19015-KA4-731
Radiator-l
|
19015-KA4-731 |
— | ||
|
3
|
3
19033-KA3-730
Grill radiator
|
19033-KA3-730 |
— | ||
|
4
|
4
19033-KA3-820
Grill radiator
|
19033-KA3-820 |
— | ||
|
5
|
5
19037-KA4-701 Cap |
19037-KA4-701 |
from US $36.14 |
||
| replacement | |||||
|
5
|
5
19045-MZ1-621 Cap, radiator |
19045-MZ1-621 |
from US $20.86 |
||
|
6
|
6
19051-KA3-710 Rubber |
19051-KA3-710 |
from US $2.89 |
||
|
7
|
7
19052-KA3-730 Collar |
19052-KA3-730 |
US $6.56 |
||
| replacement | |||||
|
7
|
7
19052-KA3-710 Collar |
19052-KA3-710 |
from US $4.29 |
||
|
8
|
8
19053-KA3-730
Rub,radiater cush
|
19053-KA3-730 |
— | ||
|
9
|
9
19062-KA3-731 Hose,b water |
19062-KA3-731 |
US $26.10 |
||
|
10
|
10
19063-KA3-730
Hose d water
|
19063-KA3-730 |
— | ||
|
11
|
11
19064-KA4-730
Hose f,water
|
19064-KA4-730 |
— | ||
|
12
|
12
19066-KA3-730
Hose g water
|
19066-KA3-730 |
— | ||
|
13
|
13
19067-KA4-730
Hose,c,water
|
19067-KA4-730 |
— | ||
|
14
|
14
19069-KA4-730
Joint, water hose
|
19069-KA4-730 |
— | ||
|
15
|
15
19506-KA4-000 Clamp, water hose |
19506-KA4-000 |
from US $6.66 |
||
|
16
|
16
19507-KA4-700 Clamp b, water hose |
19507-KA4-700 |
US $10.05 |
||
| replacement | |||||
|
16
|
16
19505-KS6-700 Clamp a, water hose |
19505-KS6-700 |
from US $7.65 |
||
|
17
|
17
19508-KA3-710 Nut, spring, 6mm |
19508-KA3-710 |
from US $4.44 |
||
|
18
|
18
95001-751-704-0
Tube,fuel,7.5x170
|
95001-751-704-0 |
— | ||
| replacement | |||||
|
18
|
18
95001-750-0160M Bulk tube,f 75x1m |
95001-750-0160M |
from US $11.69 |
||
|
19
|
19
95002-01130 ClipTUBE(A13) |
95002-01130 |
from US $1.40 |
||
|
20
|
20
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
21
|
21
95003-140-601-0
Tube,vinl,6x9x600
|
95003-140-601-0 |
— | ||
|
22
|
22
96000-0602200 Bolt, flange, 6x22 |
96000-0602200 |
from US $0.74 |
||
| replacement | |||||
|
22
|
22
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
