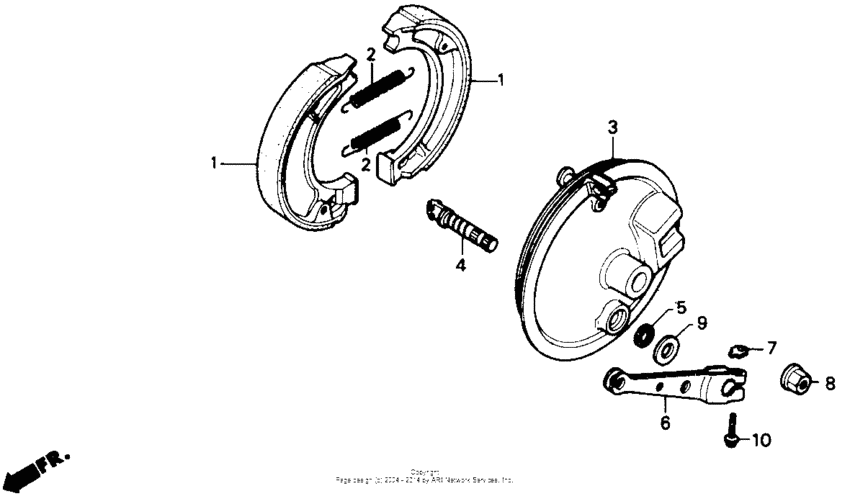

Front brake panel 85 Diagram Honda CR80
- Year
- 1985
- Model code
- CR80R A
- Sales region
- USA
- Frame
- JH2HE040*FK200010 - JH2HE040*FK206049
- Engine Capacity
- 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-KJ2-305 Shoe set, brake |
06450-KJ2-305 |
US $65.82 |
||
|
1
|
1
43120-GC4-005
Shoe, brake
|
43120-GC4-005 |
— | ||
|
2
|
2
43151-GC4-000 Spring, brake shoe |
43151-GC4-000 |
from US $4.14 |
||
|
3
|
3
45100-GC4-830ZA
Panel com*nh-105*
|
45100-GC4-830ZA |
— | ||
|
4
|
4
45131-GC4-830
Cam,front brake
|
45131-GC4-830 |
— | ||
|
5
|
5
45134-GC4-701 Dust seal, brake cam |
45134-GC4-701 |
from US $3.70 |
||
|
6
|
6
45410-GC4-830
Arm,front brake
|
45410-GC4-830 |
— | ||
|
7
|
7
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.29 |
||
|
8
|
8
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.77 |
||
|
9
|
9
90525-GC4-700 Washer, brake arm |
90525-GC4-700 |
from US $2 |
||
|
10
|
10
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
10
|
10
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
10
|
10
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
