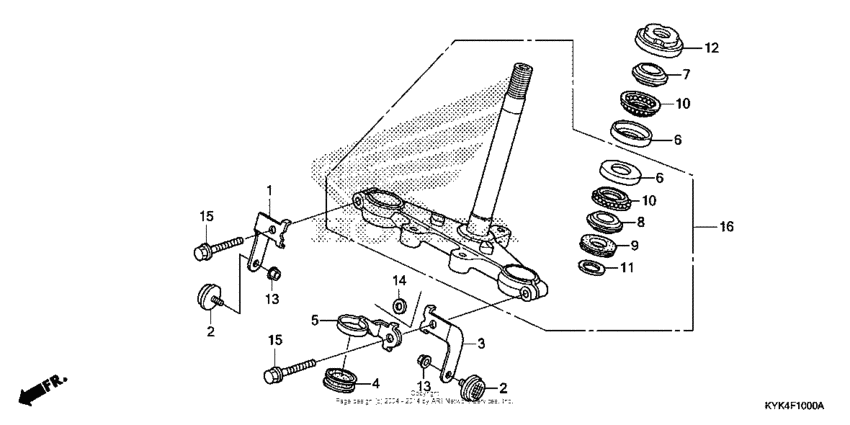

Steering stem Diagram Honda CRF110
- Year
- 2013
- Model code
- CRF110F AC
- Sales region
- USA
- Frame
- LALJE021*D3000022 - LALJE021*D3099999
- Engine Capacity
- 110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
5
|
5
45468-KYK-910 Guide, brake cable |
45468-KYK-910 |
US $8.42 |
||
|
6
|
6
50301-KTT-900 RaceSTEERING TOP BALL |
50301-KTT-900 |
from US $10.80 |
||
|
7
|
7
53211-KTT-900 RaceSTEERING TOP CONE |
53211-KTT-900 |
from US $14.21 |
||
|
8
|
8
53212-KTT-900 RaceSTEERING BOTTOM CONE |
53212-KTT-900 |
from US $10.95 |
||
|
9
|
9
53214-200-000 Dust seal |
53214-200-000 |
from US $2.14 |
||
|
10
|
10
53215-KTR-900 Ball, steering steel |
53215-KTR-900 |
from US $10.66 |
||
|
11
|
11
53215-KVX-600 Washer |
53215-KVX-600 |
from US $1.92 |
||
|
12
|
12
53220-KTT-900 Thread comp.STEERING HEAD TOP |
53220-KTT-900 |
from US $23.80 |
||
|
14
|
14
Q1400-00209 Washer, flat (8mm) |
Q1400-00209 |
US $1.79 |
||
| replacement | |||||
|
14
|
14
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
14
|
14
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
15
|
15
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
16
|
16
53219-KYK-910 Stem sub-assy., strg |
53219-KYK-910 |
US $68.37 |
||
